LPC-03P Compact Capsule Slip Ring

LPC-03P Compact Capsule Slip Ring

  • Number of Circuits 06/12/18/24
  • Current 5A(Signal)/10A/15A
  • Insulation Resistance ≥500MΩ@500VDC
  • Wire Length rotor/stator:300mm
  • Voltage 240VAC/DC
Downloads CONTACT US
Model List

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

.

The LPC-03P06S slip ring provides 3 circuits at 5 amps and 6 circuits for signal (2 amps per circuit).The LPC-03P provides 3 circuits at 10 amps. This compact power and signal handling design provides unique capability for many challenging applications.

The LPC-03P serials provide smoother running, higher design precision, lower torque, lower contact resistance, and lower electrical noise than competitive slip rings.

Features

◆ 3 circuits or more models

◆ 5 amps /2 amps and 10 amps /2 amps circuits combinations

◆ Speed up to 300 rpm continuous

​◆ Gold-gold contacts

◆ Color-coded, silver-plated insulated lead wires

◆ Longer lead wire available

◆ Compatible with data bus protocols

◆ Transfers analog and digital signals

◆ Sealed units are available

Advantages

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability

◆ Addition of special components

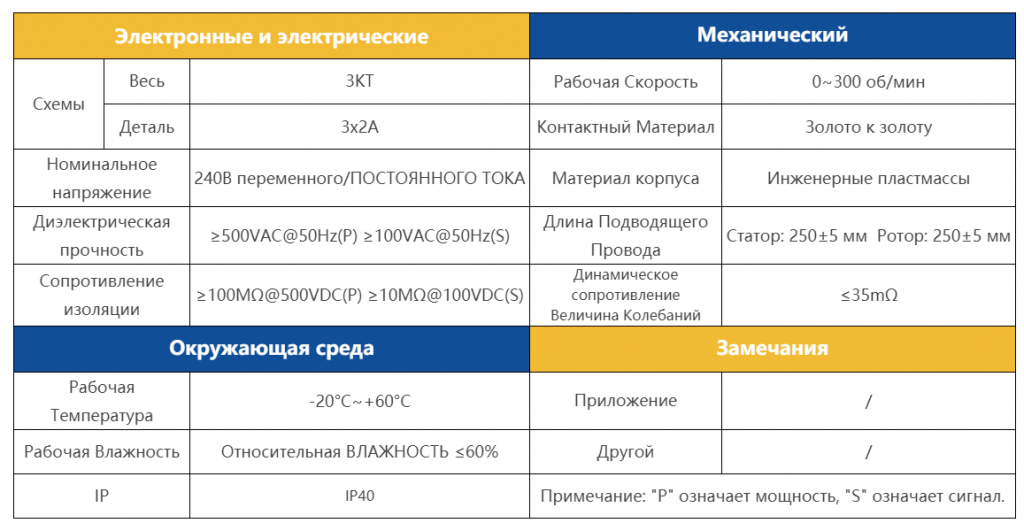

LPC-03P slipring .jpg
