LPC-06A Capsule Slip Ring

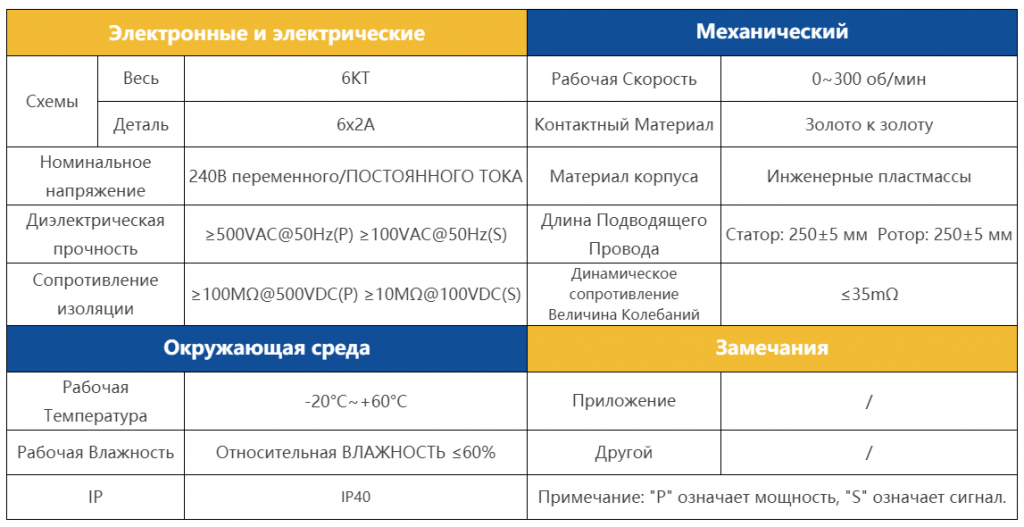

LPC-06A Capsule Slip Ring

  • Number of Circuits :06
  • Current : 2A
  • Insulation Resistance :≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
  • Lead Wire Length : Stator:250±5mm Rotor:250±5mm
  • Rating Voltage : 0~240V AC/DC
  • Working Temperature :-20°C~+60°C
Downloads CONTACT US
Model List

Description:

This slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint.

The LPC-06A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-06A provides smoother running, lower torque and lower electrical noise than   similar slip rings. It is available in 6, 12, 18, 24, 36 to 125 circuit models.

Features

◆ 2 amps per circuit , 240 VAC/VDC

◆ Gold-Gold contacts ensure long life time

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated lead wires

◆ Transferring analog and digital signals

◆ Structural flange on the housing

◆ Also available at 5A and 10A power rings combined with 2 amps rings.

Advantages

◆ Low torque minimizes system torque budget

◆ Compact package.

◆ Smooth running

◆ Low electrical noise

◆ Prompt shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability

◆ Addition of special components

◆ Working speed would be up to 300rpm or higher

◆ Transfer analoge and digital signals

LPC-06A  slipring.jpg
