LPC-06B Capsule Slip Ring

LPC-06B Capsule Slip Ring

  • Number of Circuits : 06
  • Current :2A

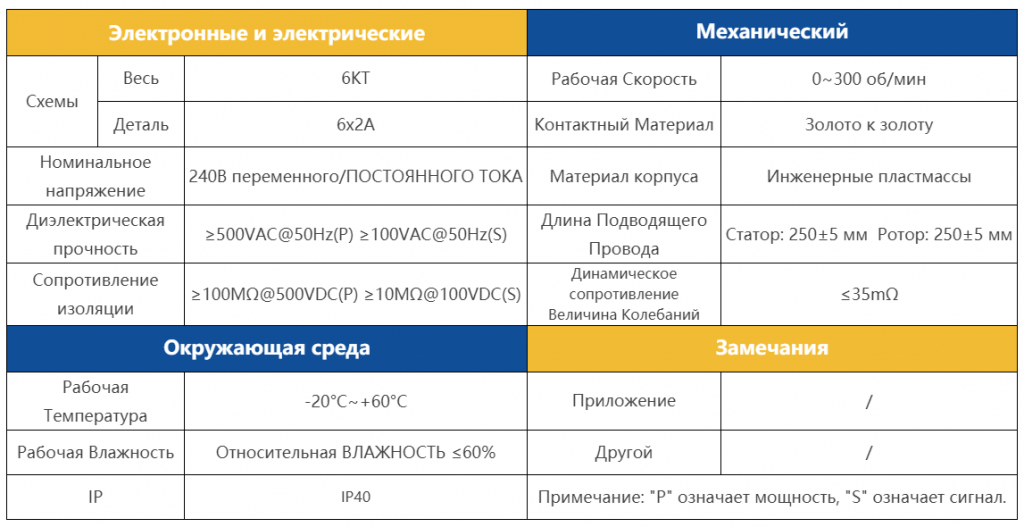

  • Insulation Resistance :≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
  • Lead Wire Length :Stator:250±5mm Rotor:250±5mm
  • Voltage 240VAC/DC
  • Working Temperature :-20°C~+60°C
Downloads CONTACT US
Model List

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

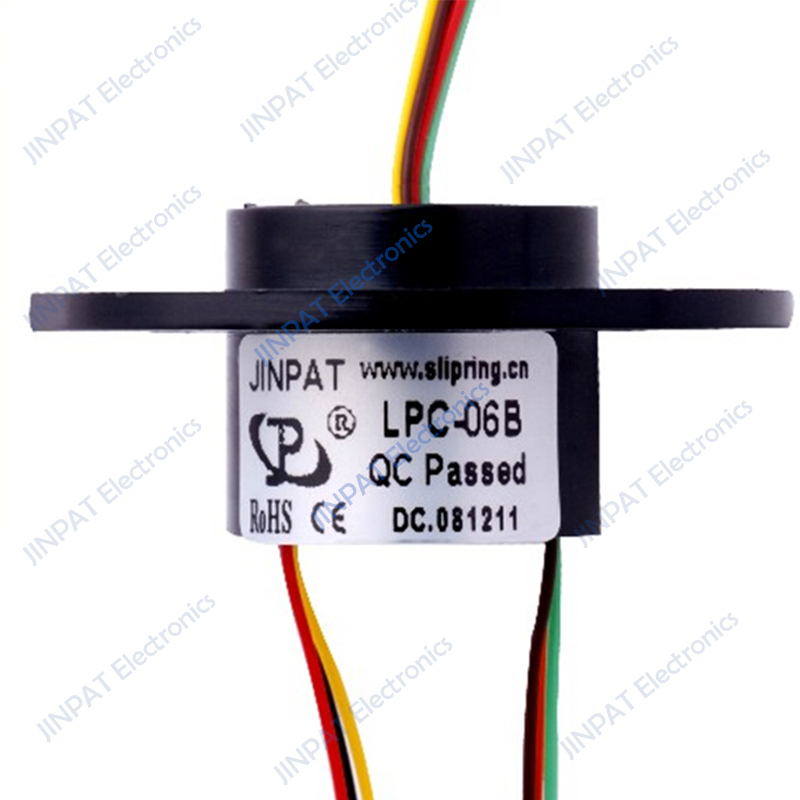

The LPC-06B slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-06B provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in1- 6 circuit models.

Features

◆ 6 circuits models

◆ 2 amps per circuit , 240 VAC /DC.

◆ Precision ball bearings meet or exceed life requirements for most commercial applications

◆ Speed up to 300 rpm continuous

◆ Gold- gold contacts

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated lead wires

◆ Transfer analog and digital signals

◆ Also available with 5 and 10 amps power rings combined with 2 amps rings.

Benefits:

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability
