Standard & Custom Slip Rings

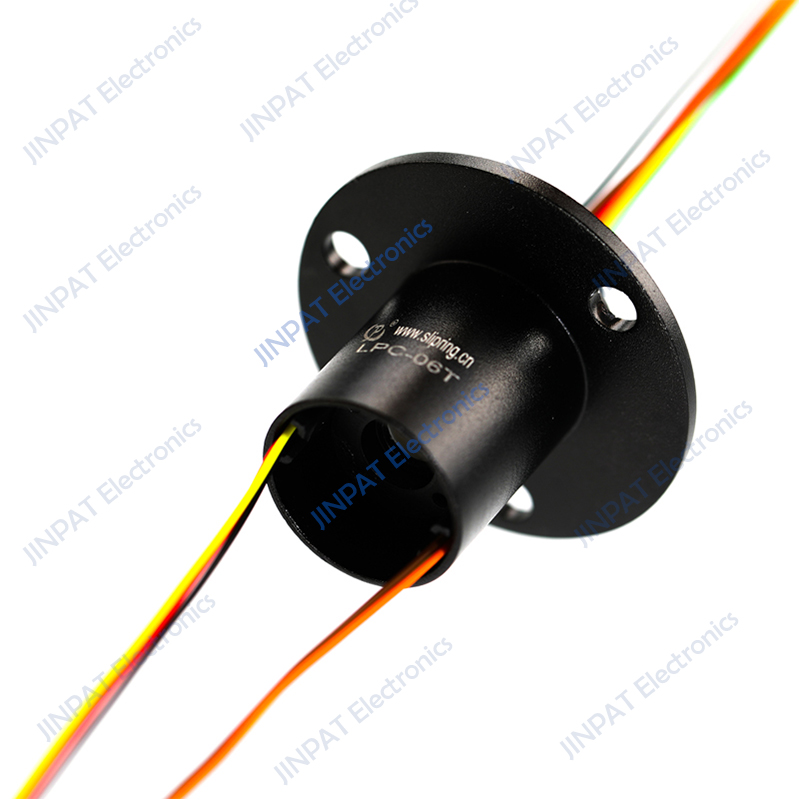

LPC-06T Capsule Slip Ring

LPC-06T Capsule Slip Ring

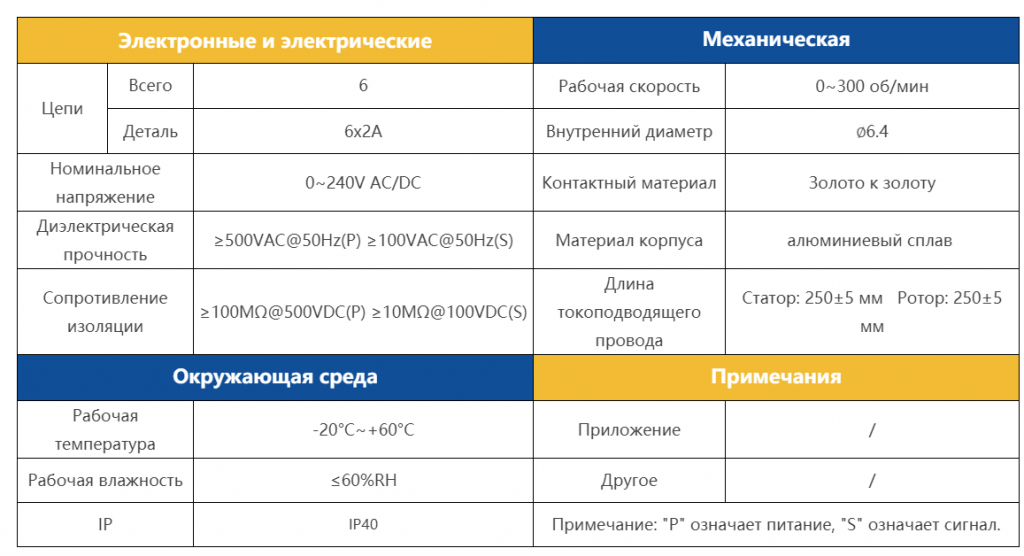

  • Number of Circuits :6
  • Current :2A
  • Insulation Resistance :≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)
  • Lead Wire Length :Stator:250±5mm Rotor:250±5mm
  • Rating Voltage :0~240V AC/DC
  • Working Temperature :-20°C~+60°C
Downloads CONTACT US
Model List


This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.


◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability
