LPM-04A  Miniature Capsule Slip Rings

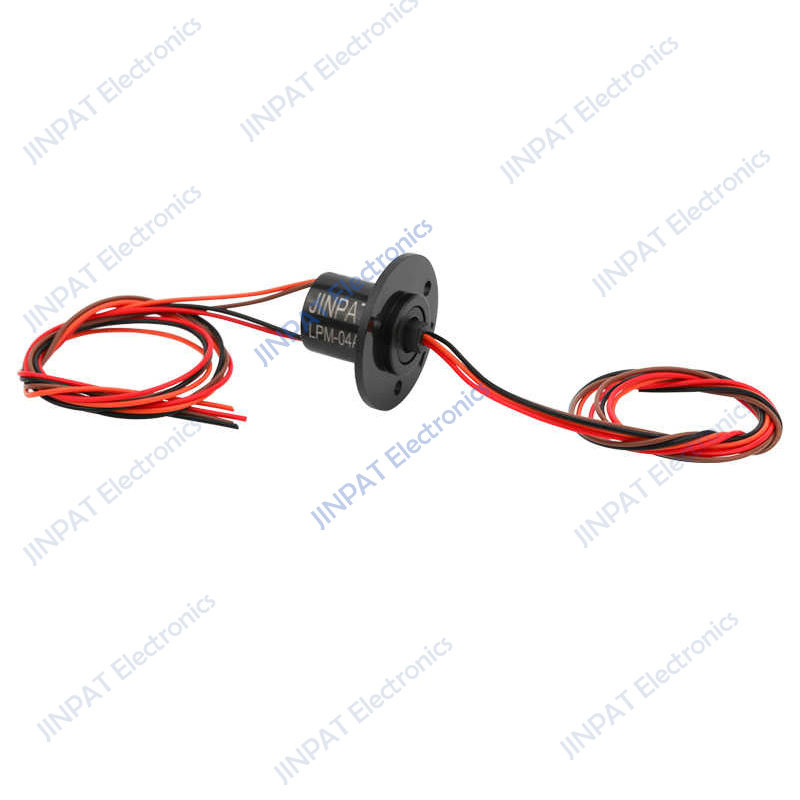

LPM-04A Miniature Capsule Slip Rings

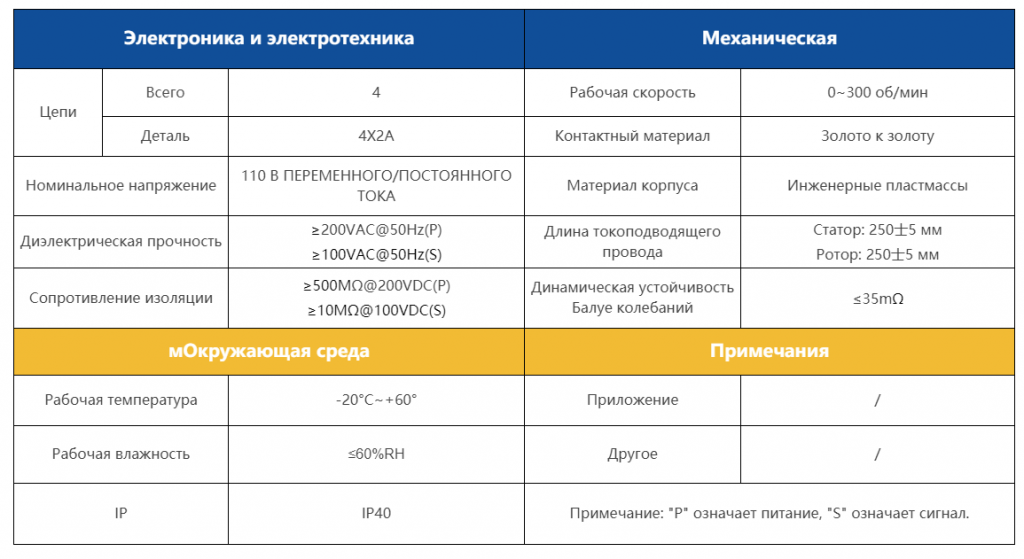

  • Number of Circuits :4
  • Current :1-2A
  • Insulation Resistance :≥500MΩ@200VDC(P)≥10MΩ@100VDC(S)
  • Lead Wire Length :Stator: 250士5mmRotor: 250士5mm
  • Rating Voltage :110VAC/DC
  • Working Temperature :-20°C~+60°
Downloads CONTACT US
Model List

LPM-04A Miniature Slip Ring

Description

LPM04A Miniature Slip Ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-04A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPM-04A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.

Features

1. 4 circuits models

2. 1 amps per circuit , 240 VAC/DC

3. Precision assembly to provide exceptional rotational life

4. Speed up to 300 rpm continuous

5. Gold-Gold contacts

6. Flexible, color-coded, silver-plated, stranded copper lead wire

7. Superior handling of low level control signals

8. Metal housing optional

LPM-04AOutline Drawing
