LPT050

LPT050

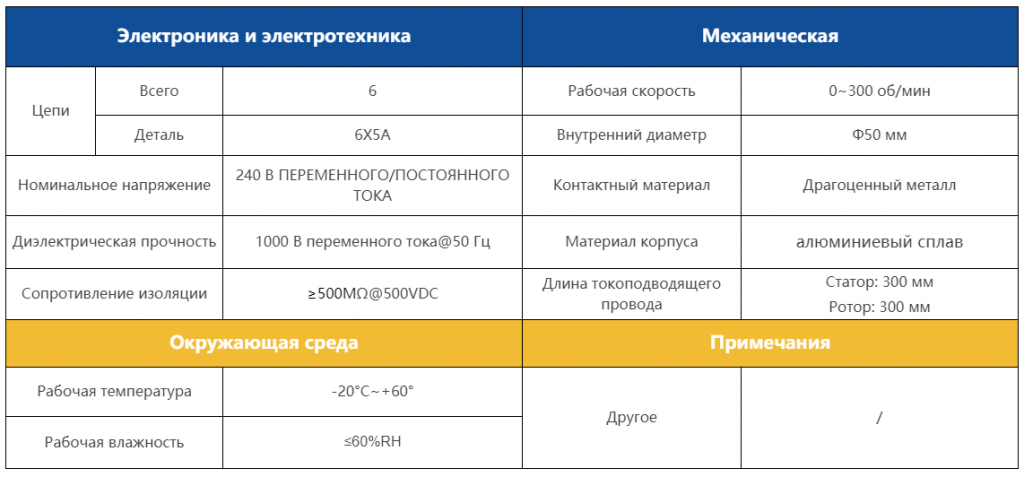

  • Number of Circuits: 6CKT
  • Insulation Resistance :≥500MΩ@500VDC
  • Voltage: 240VAC/DC
  • Dielectric Strength :1000VAC@50Hz
  • Working Temperature:-20°C~+60°
  • Inner Diameter:Φ50mm
Downloads CONTACT US
Model List

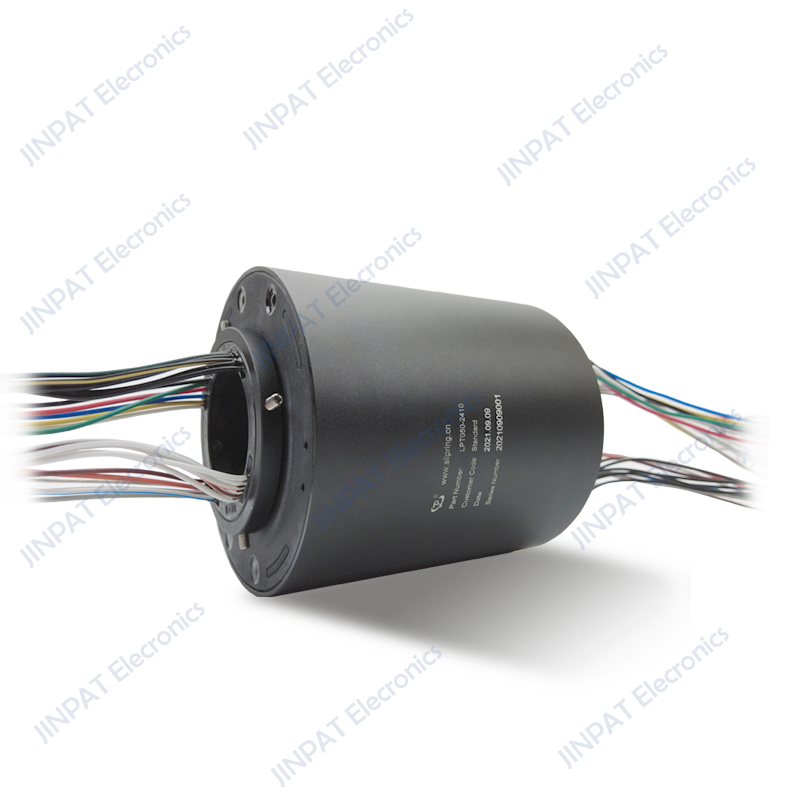

LPT050 Series Slip Ring with Through Bore 50mm

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The LPT050 uses JINPAT fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact friction per fiber and low contact wear rates. In addition,
fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

LPT050-0605-Outline Drawing

LPT050-0605 (2).png

LPT050-0610-Outline Drawing


LPT050-0615-Outline Drawing

LPT050-0615 (2).png

LPT050-1205-Outline Drawing


LPT050-1210-Outline Drawing

LPT050-1210 (2).png

LPT050-1215-Outline Drawing


LPT050-1805-Outline Drawing


LPT050-1810-Outline Drawing


LPT050-1815-Outline Drawing

LPT050-1815 (2).png

LPT050-2405-Outline Drawing


LPT050-2410-Outline Drawing


LPT050-2415-Outline Drawing
