LPM-12B  Miniature Capsule Slip Rings

LPM-12B Miniature Capsule Slip Rings

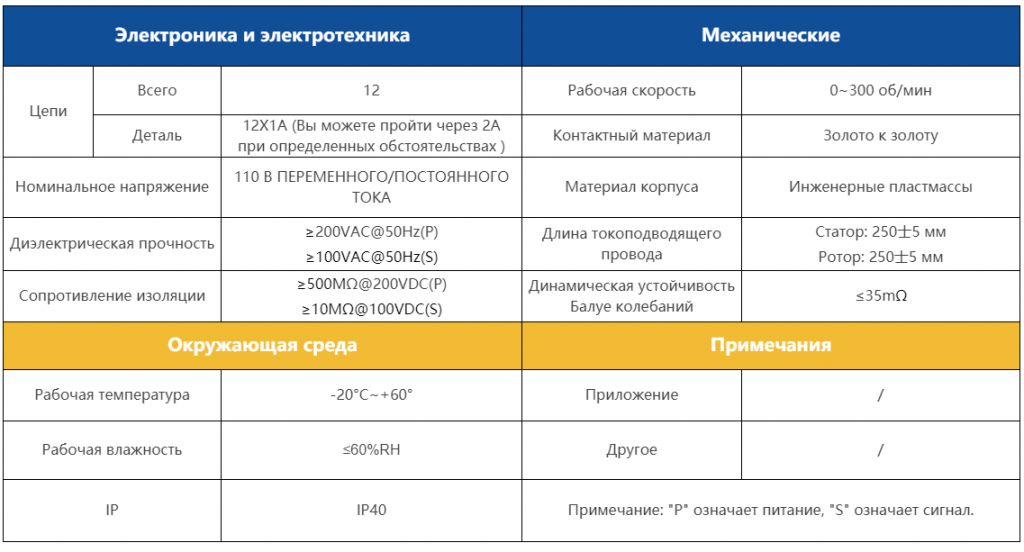

  • Number of Circuits :12
  • Current :1-2A
  • Insulation Resistance :≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S)
  • Wire Length :Stator: 250士5mm Rotor: 250士5mm
  • Rating Voltage :110VAC/DC
Downloads CONTACT US
Model List

LPM-12B   Miniature Capsule Slip Rings

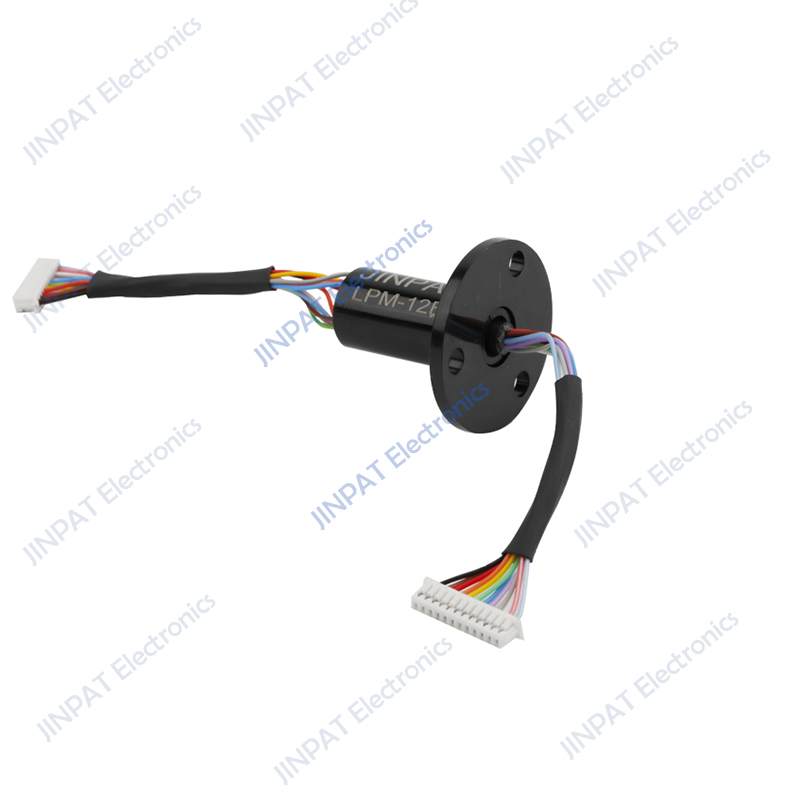

The LPM-12B miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPM-12B allows tremendous flexibility in dealing with system size restrictions. It is available in 4, 6 and 12 circuit configurations.

LPM-12B Outline Drawing
