Reliable power and signal transmission in a single solution

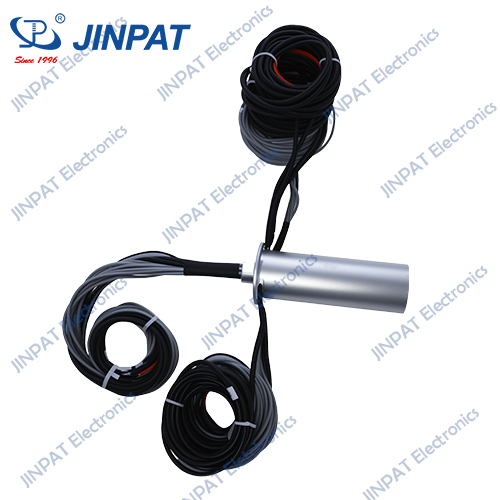

For systems such as IMU calibration platforms, stable power and signal transmission during rotation is extremely important. JINPAT’s solution is a hollow current collector specially designed for complex applications with high accuracy requirements.
Configuration:
•4 channels at 30A
•4 channels at 20A
•3 channels at 2A
•4 signal channels for sensors
•27 CAN bus channels
•10 encoder signal channels
The hollow design allows the device to be mounted on a shaft and tubes or cables to be routed through the center, which is ideal for confined spaces.
The optimal solution for high-precision platforms
This model provides high signal stability, low noise, and a long service life. It is ideal for precision measuring devices and IMU calibration platforms where multiple signal types need to be transmitted simultaneously.
Why choose JINPAT?
•Customizable channels
•Low contact resistance and high wear resistance
•Compact size and durable housing
•Support for complex signals: CAN, encoders, sensors
Contact us for a personalized solution for your tasks. Check out the range of hollow current collectors from JINPAT on our website.
