СТАНДАРТНЫЕ И МОДИФИЦИРОВАННЫЕ контактные кольца

LPMS-12U small slip ring

LPMS-12U small slip ring

  • Number of Circuits :12
  • Current :1A
  • Insulation Resistance :≥50MΩ@100VDC
  • Wire Length:Stator: 250士5mmRotor: 250士5mm
  • Rating Voltage :48V AC/DC
ДОКУМЕНТАЦИЯ СВЯЗАТЬСЯ С НАМИ

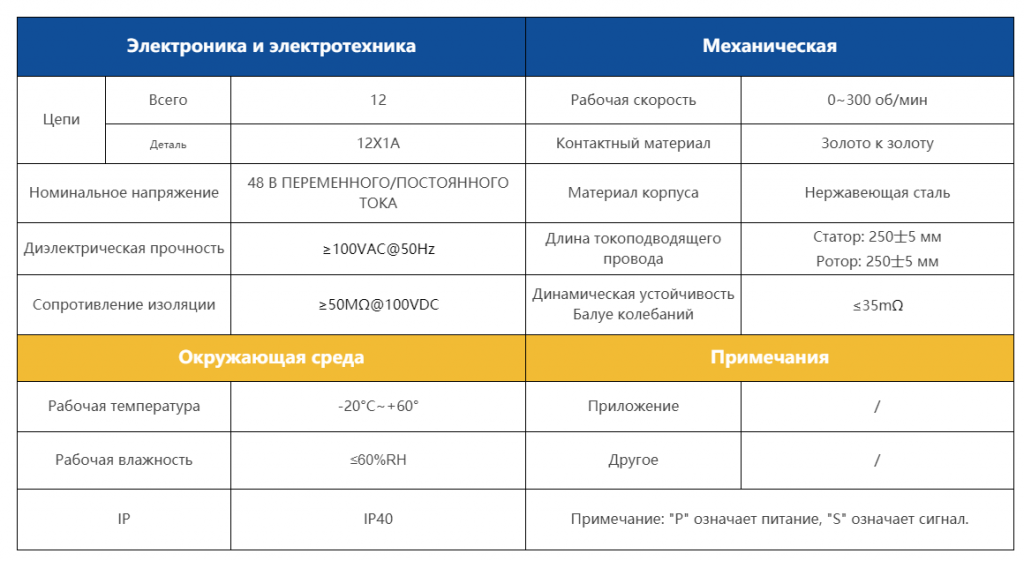

Характеристики модели

This slip ring product adopts unique fiber coating technique that contributes to its low electrical noise and low wear. Besides, it also takes up US military class gold-plated surface processing technique and therefore ensure a long product life of the slip ring. It can transmit up to 30 kinds of signals like USB, HDMI, SDI, Ethernet and RS422, etc. while enabling 360-degree rotation. Customers can choose slip rings of various sizes according to their own needs.

LPMS-12U SY.jpg
Связанные ярлыки :
