LPT025

LPT025

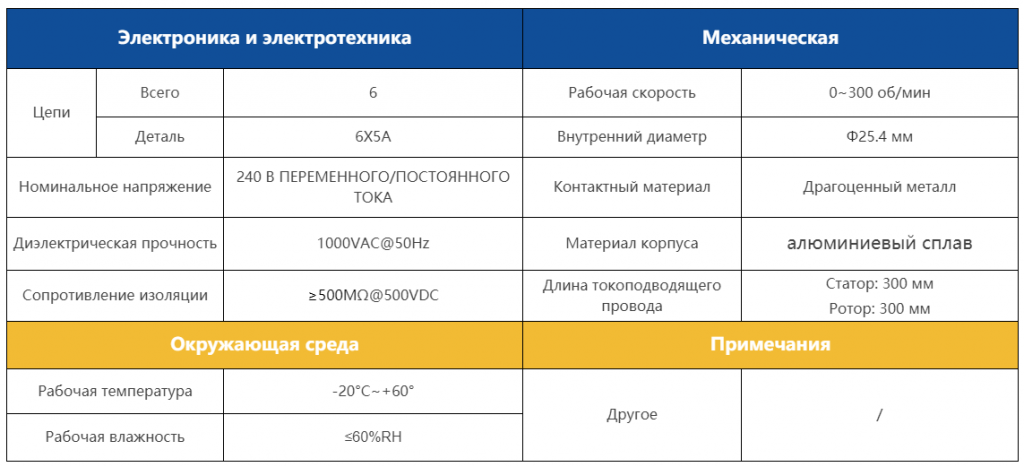

  • Number of Circuits :6CKT
  • Insulation Resistance: ≥500MΩ@500VDC
  • Voltage :240VAC/DC
  • Dielectric Strength 1000VAC@50Hz
  • Working Temperature:-20°C~+60°
  • Working Humidity:≤60%RH
  • Lead Wire Length:Stator:300mm Rotor:300mm
Downloads CONTACT US
Model List

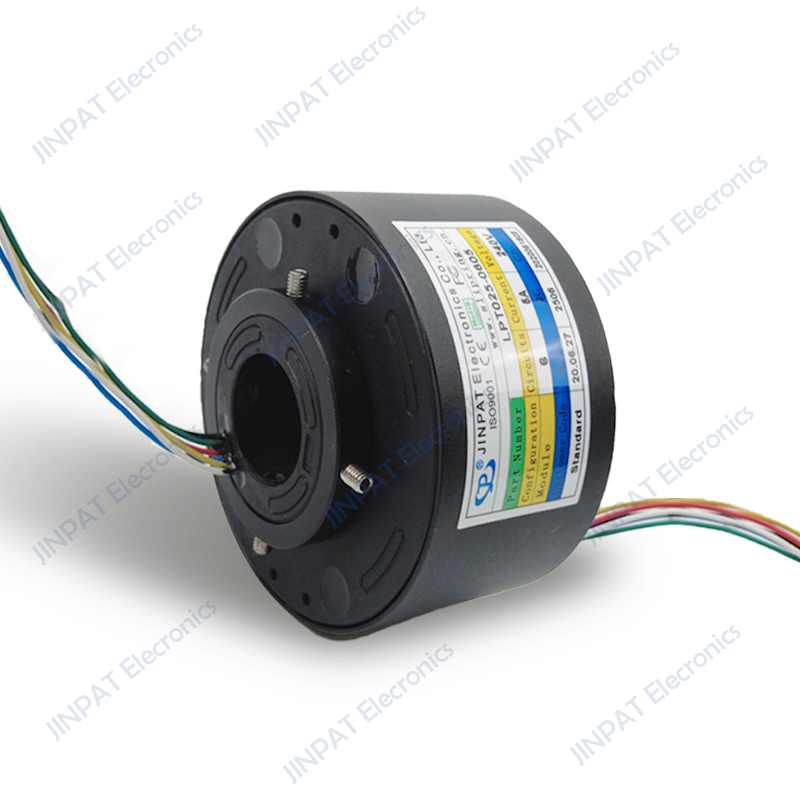

LPT025-0605 through hole slip ring features 6 circuits routing 5A per wire.This compact slip ring has 25.4mm bore size for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications.this design features long life, fiber brush contact technology for ultimate performance in many challenging applications.

It provides an economical, readily available solution when a compact through-bore configuration is required.   LPT025 series through bore slip ring ,the 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular LPT025 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, life time operation.

LPT025-0605-Outline Drawing


LPT025-0610-Outline Drawing


LPT025-0615-Outline Drawing


LPT025-1205-Outline Drawing


LPT025-1210-Outline Drawing


LPT025-1215-Outline Drawing


LPT025-1805-Outline Drawing


LPT025-1810-Outline Drawing


LPT025-1815-Outline Drawing


LPT025-2405-Outline Drawing


LPT025-2410-Outline Drawing


LPT025-2415-Outline Drawing
