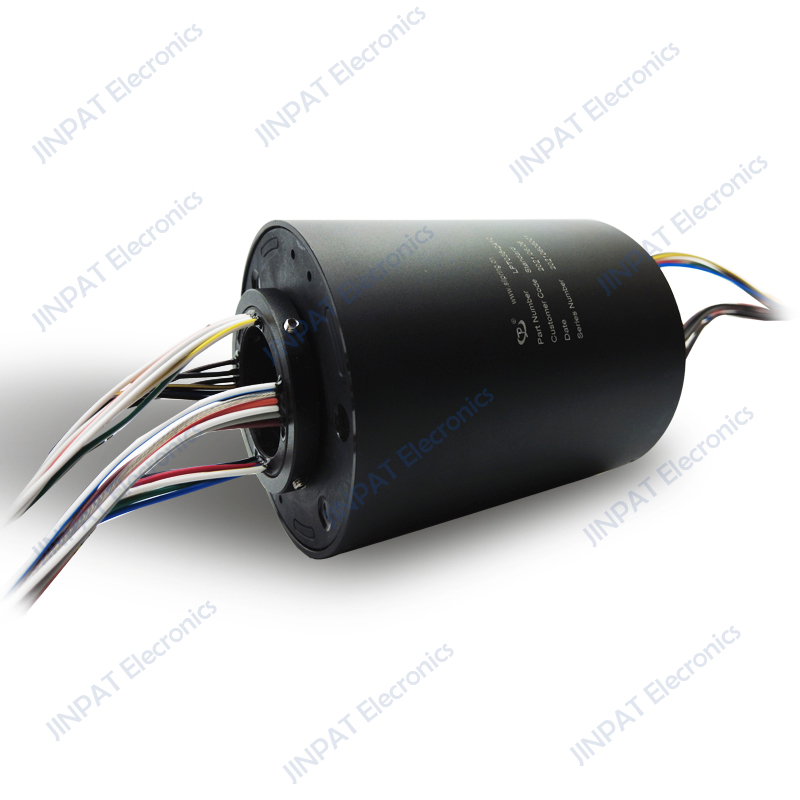

LPT038

LPT038

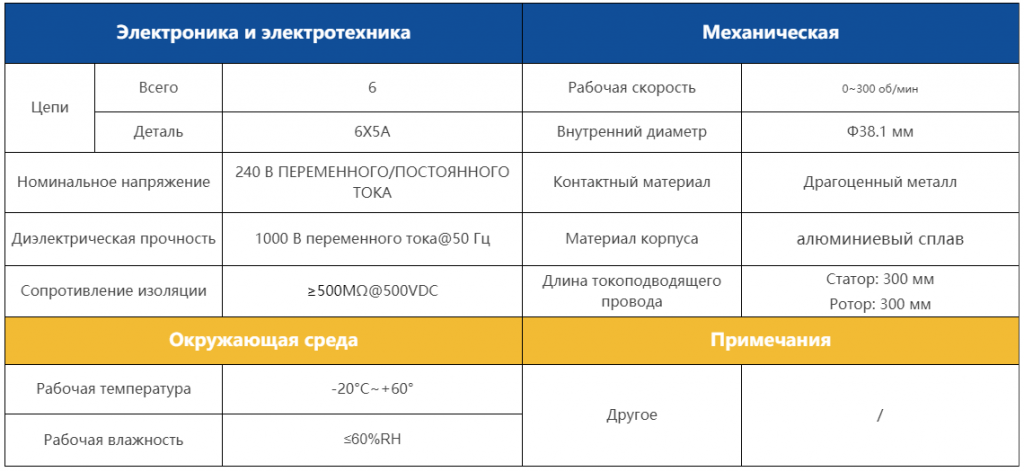

  • Number of Circuits: 6CKT
  • Insulation Resistance :≥500MΩ@500VDC
  • Voltage: 240VAC/DC
  • Dielectric Strength: 1000VAC@50Hz
  • Working Temperature:-20°C~+60°
  • Working Humidity:≤60%RH
  • Inner Diameter:Φ38.1mm
Downloads CONTACT US
Model List

The LPT038 provides an economical, readily available solution when a compact through bore configuration is required.

This unit provides a 38.1mm through bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths.


LPT038-0605-Outline Drawing


LPT038-0610-Outline Drawing


LPT038-0615-Outline Drawing


LPT038-1205-Outline Drawing


LPT038-1210-Outline Drawing


LPT038-1215-Outline Drawing


LPT038-1805-Outline Drawing


LPT038-1810-Outline Drawing


LPT038-1815-Outline Drawing


LPT038-2405-Outline Drawing


LPT038-2410-Outline Drawing


LPT038-2415-Outline Drawing
