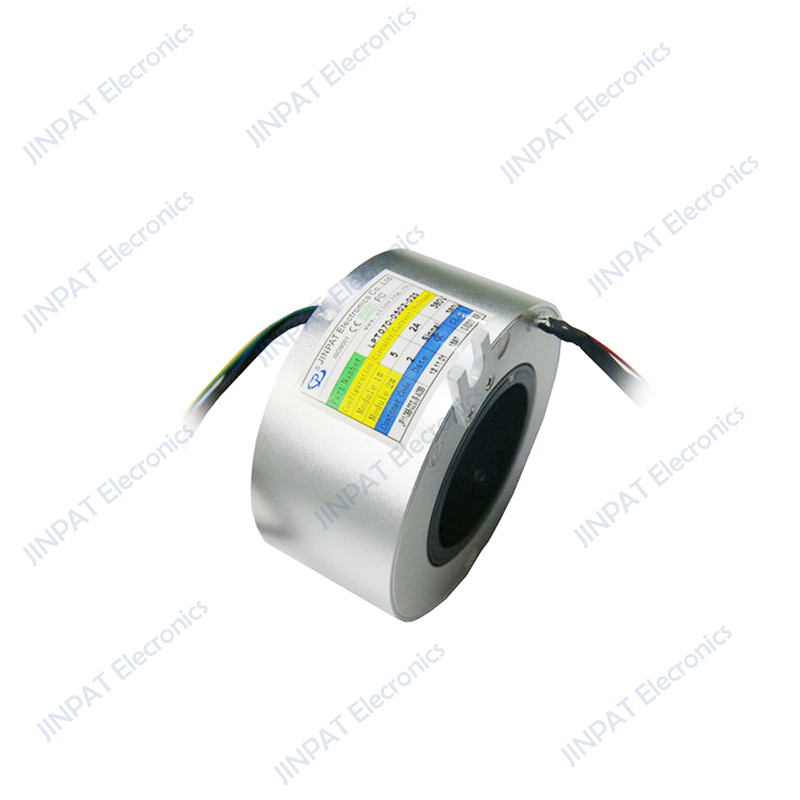

LPT070

LPT070

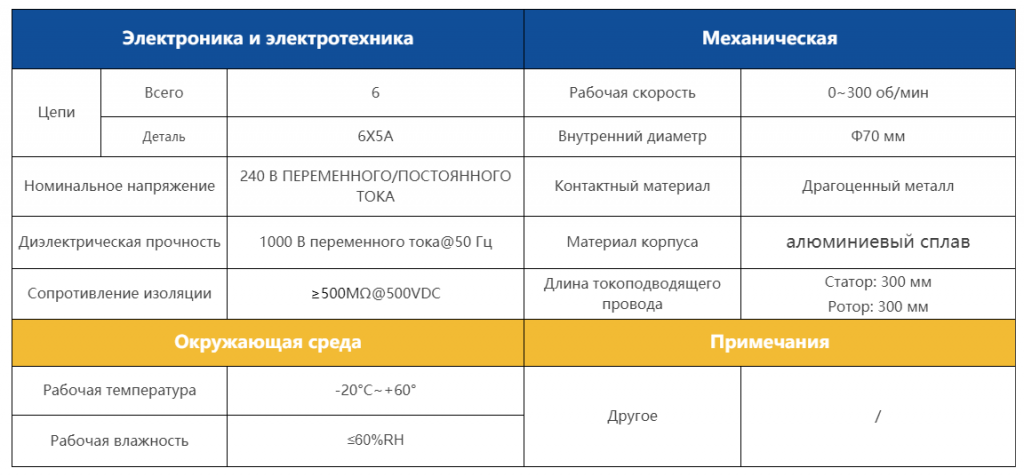

  • Number of Circuits 6CKT
  • Insulation Resistance ≥500MΩ@500VDC
  • Voltage 240VAC/DC
  • Dielectric Strength 1000VAC@50Hz
  • Inner Diameter:Φ70mm
  • Working Temperature:-20°C~+60°
Downloads CONTACT US
Model List

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage prone wires dangling from movable joints.

The 70mm unobstructed through bore provides routing space for hydraulics, pneumatics or for a

concentric shaft mount. The LPT070 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT070 features serviceable brush blocks.

LPT070-0605-Outline Drawing


LPT070-0610-Outline Drawing


LPT070-0615-Outline Drawing


LPT070-1205-Outline Drawing


LPT070-1210-Outline Drawing


LPT070-1215-Outline Drawing


LPT070-1805-Outline Drawing


LPT070-1810-Outline Drawing


LPT070-1815-Outline Drawing


LPT070-2405-Outline Drawing

LPT070-2405 (2).png

LPT070-2410-Outline Drawing


LPT070-2415-Outline Drawing
