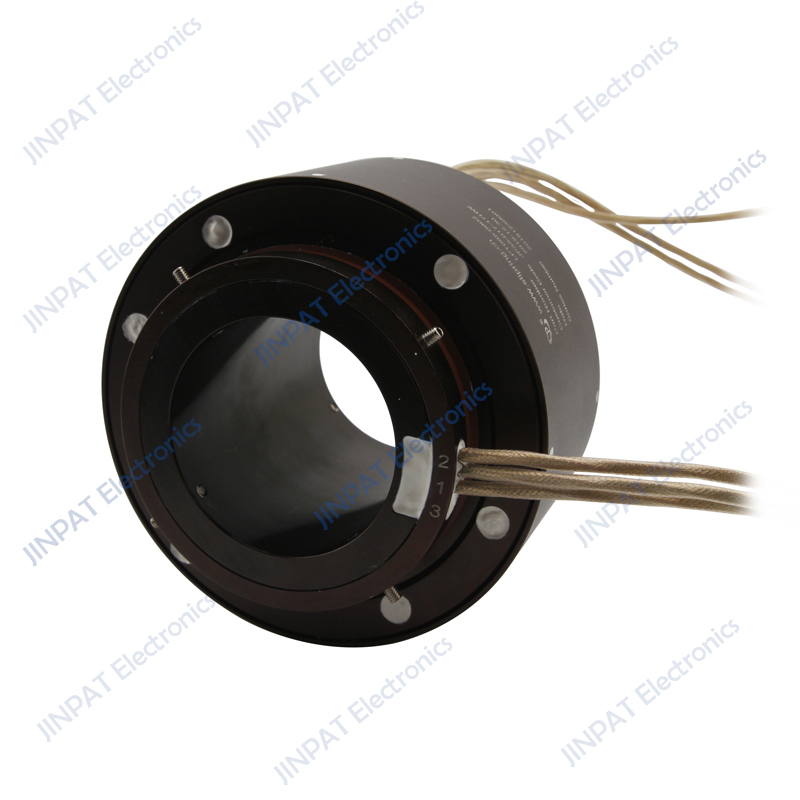

LPT180

LPT180

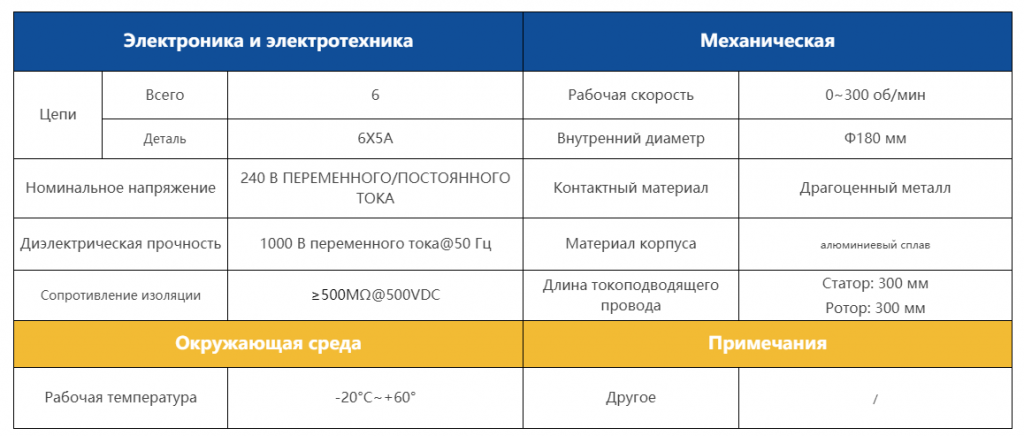

  • Number of Circuits :6CKT
  • Insulation Resistance :≥500MΩ@500VDC
  • Voltage: 240VAC/DC
  • Dielectric Strength: 1000VAC@50Hz
  • Inner Diameter:Φ180mm
  • Working Temperature:-20°C~+60°
Downloads CONTACT US
Model List

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.

LPT180-0605-Outline Drawing


LPT180-0610-Outline Drawing


LPT180-0615-Outline Drawing


LPT180-1205-Outline Drawing


LPT180-1210-Outline Drawing


LPT180-1215-Outline Drawing


LPT180-1805-Outline Drawing


LPT180-1810-Outline Drawing


LPT180-1815-Outline Drawing


LPT180-2405-Outline Drawing


LPT180-2410-Outline Drawing


LPT180-2415-Outline Drawing
