FPC Slip Rings

FPC Slip Rings

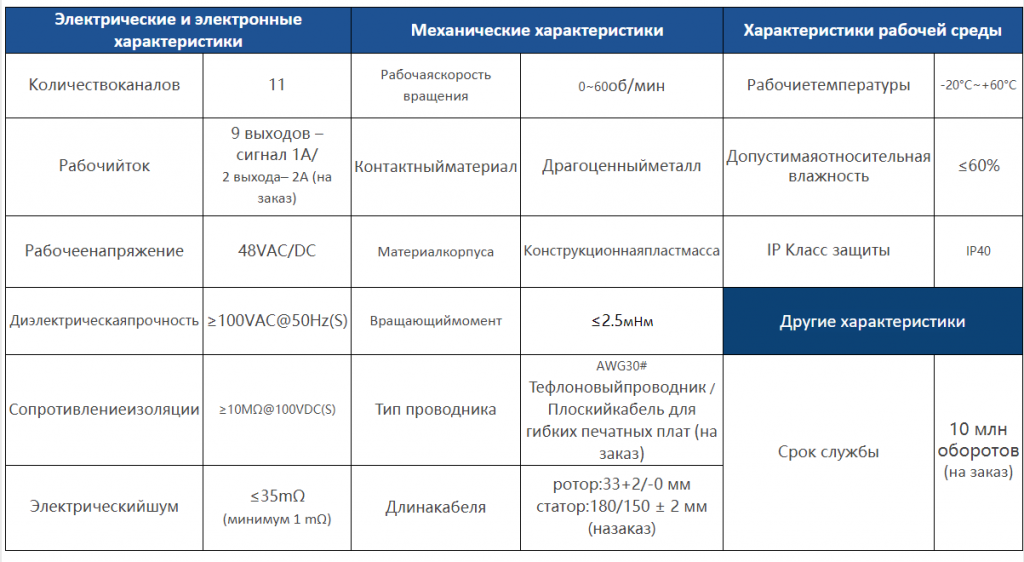

  • Number of Circuits :11CKT
  • Current :9 circuits* signal 1A/ 2 circuits * 2A (customized)
  • Insulation Resistance: ≥10MΩ@100VDC(S)

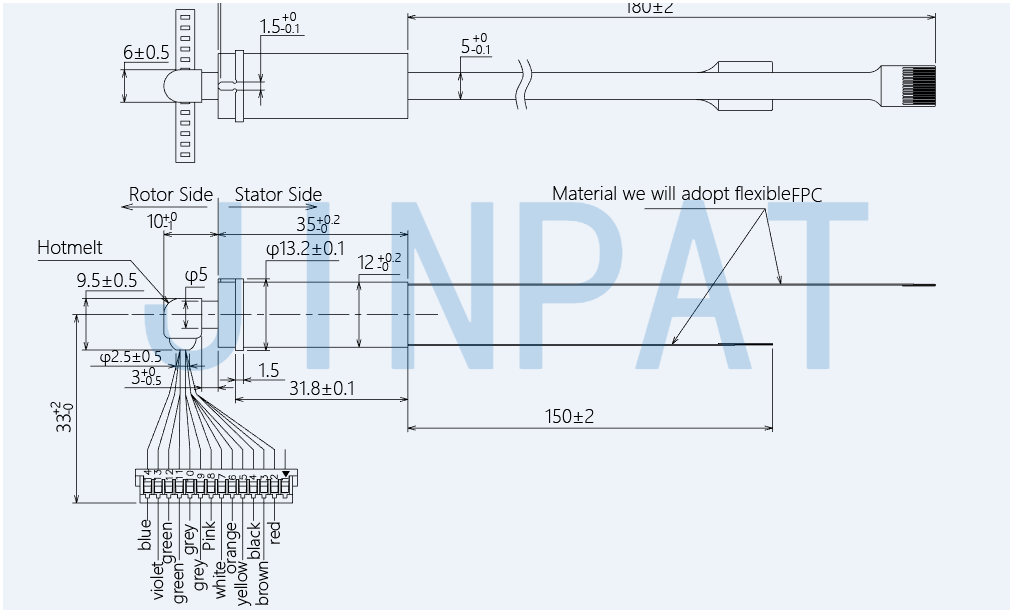

  • Wire Length Rotor: 33+2/-0mm Stator: 180/150±2 mm (customized)
  • Voltage: 48VAC/DC
  • Lead Size :10 million (customized)
Downloads CONTACT US
Model List

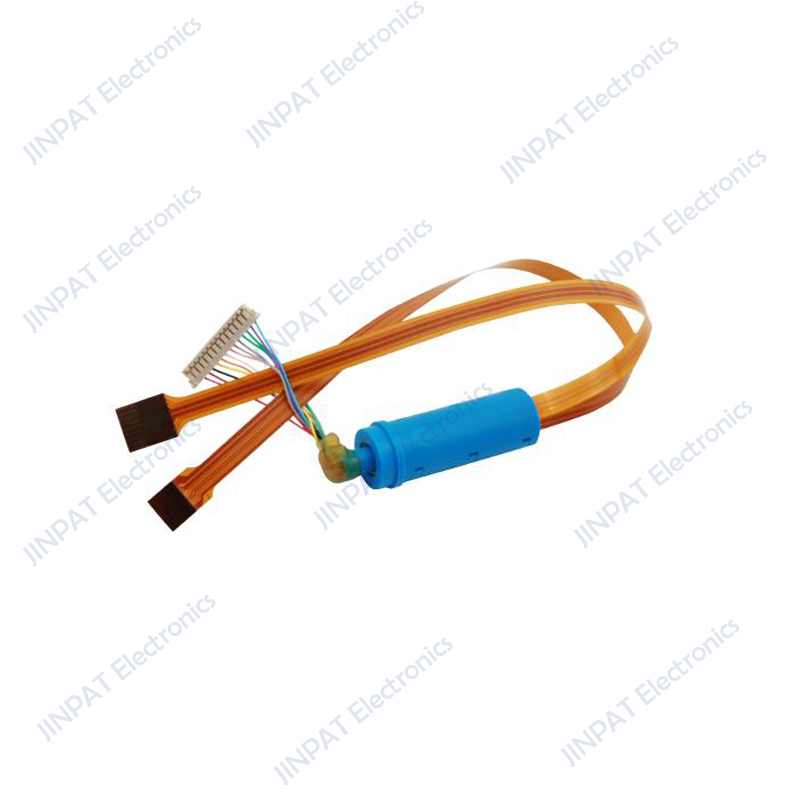

LPM-18C-0202-09S   –   Photographic apparatus

Features

1、Small power current transmission, analog and data signal

2、Low torsion force and reliable transmission

3、Domestic leading military high-standard surface treatment technique   and precise and tight internal structure

4、Gold-to-gold contact ensures stability and service life.

5、FPC connection mode has excellent folding endurance and thinner thickness.

Advantages

1、As a highly reliable, optimal and flexible connection mode, FPC slip ring is featured by high wiring density,

light weight and equal wiring diameter and is applicable to many products such as mobile phones, notebooks, PDA, digital cameras, LCM, etc.
