Standard & Custom Slip Rings

High Speed Slip Ring /High Temperature Slip Rings

High Speed Slip Ring /High Temperature Slip Rings

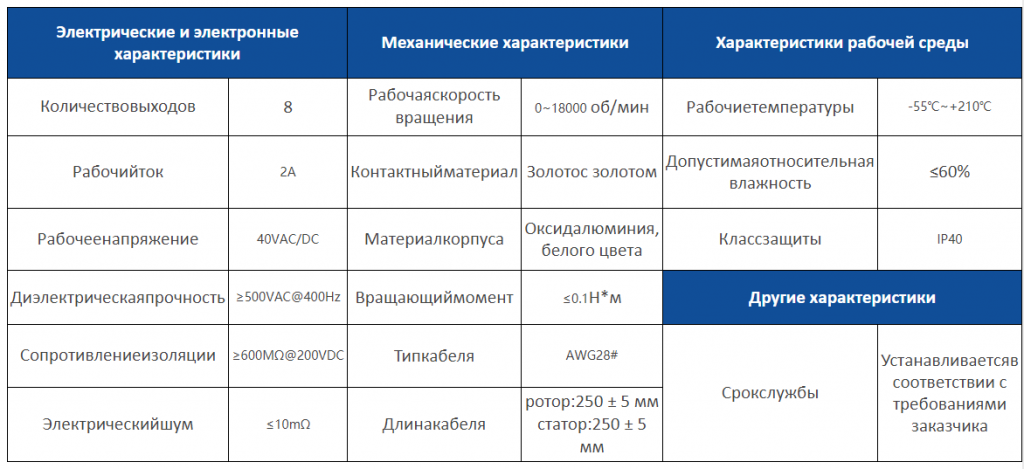

  • Number of Circuits :8CKT
  • Current :2A
  • Insulation Resistance :≥600MΩ@200VDC

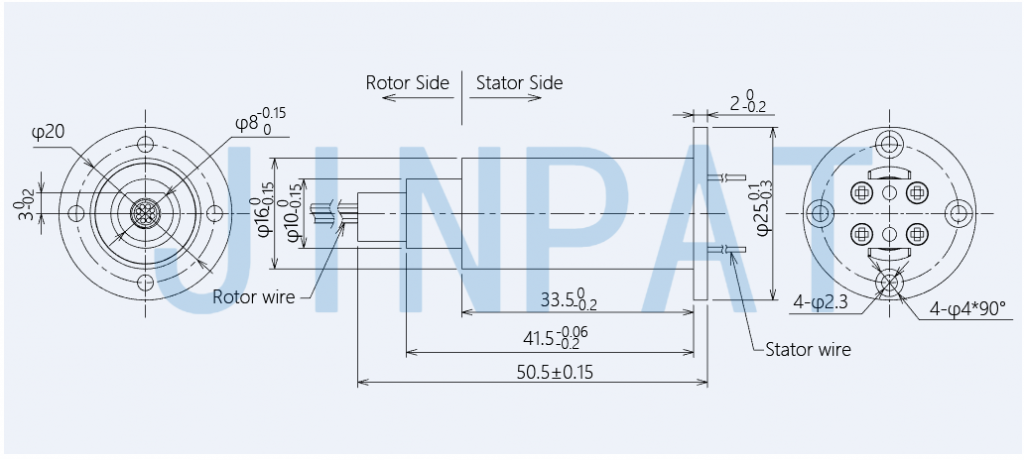

  • Wire Length: Rotor: 250±5mm Stator: 250±5mm
  • Voltage :40VAC/DC
Downloads CONTACT US
Model List

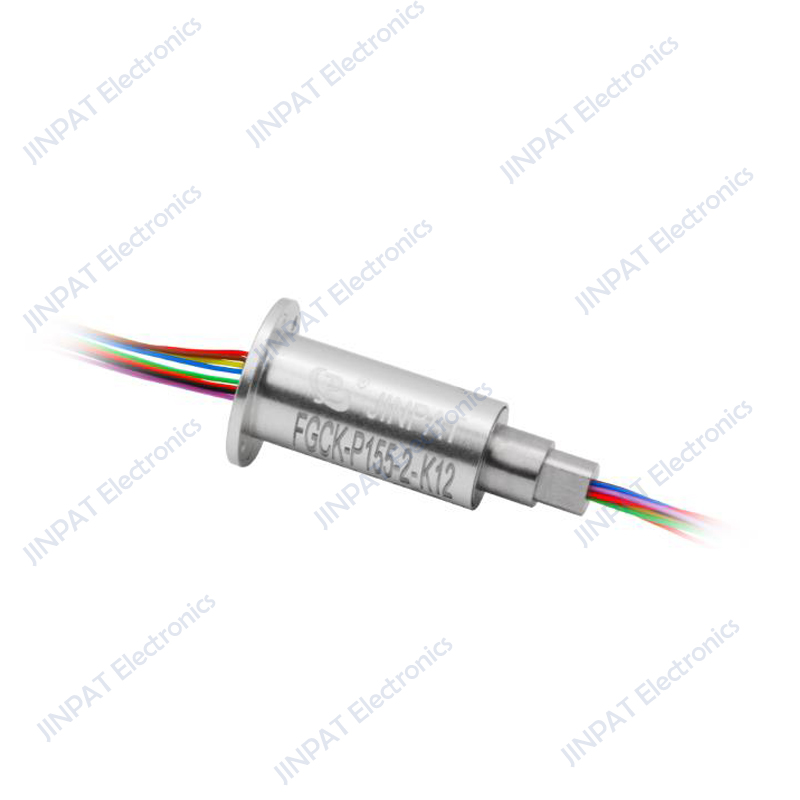

FGCK-P155-2-K12 – Testing /   Aviation / Oil Exploration

Features

1、High speed reaches 0~10000/rpm

2、Instantly reach 18000/rpm

3、High temperature use up to 210 ° C

Advantages

1、Using special molding process and super wear resistant materials

2、Solve the influence of vibration and temperature changes on the signal at high speed

3、Simultaneously meet high vibration performance indicators in harsh environments
