LPM-18A  Miniature Capsule Slip Rings

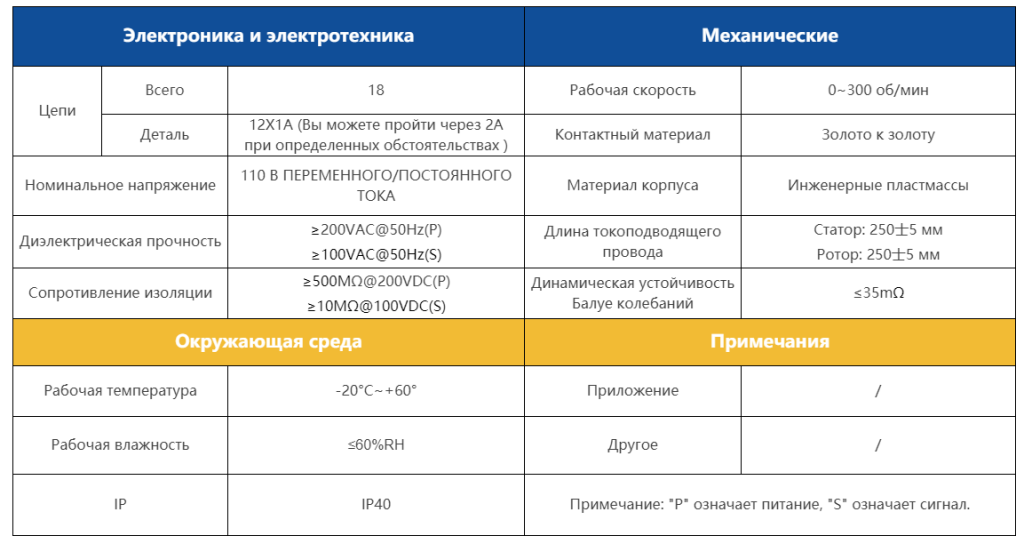

LPM-18A Miniature Capsule Slip Rings

  • Number of Circuits :18
  • Current :1-2A
  • Insulation Resistance :≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S)Wire Length :Stator: 250士5mm Rotor: 250士5mm
  • Rating Voltage :110VAC/DC
Downloads CONTACT US
Model List

LPM-18A   Miniature Capsule Slip Rings

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It’s the key apparatus of   various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-18A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. The use of gold on gold contacts assures long life, low noise, minimal interference between circuits, and low contact resistance.

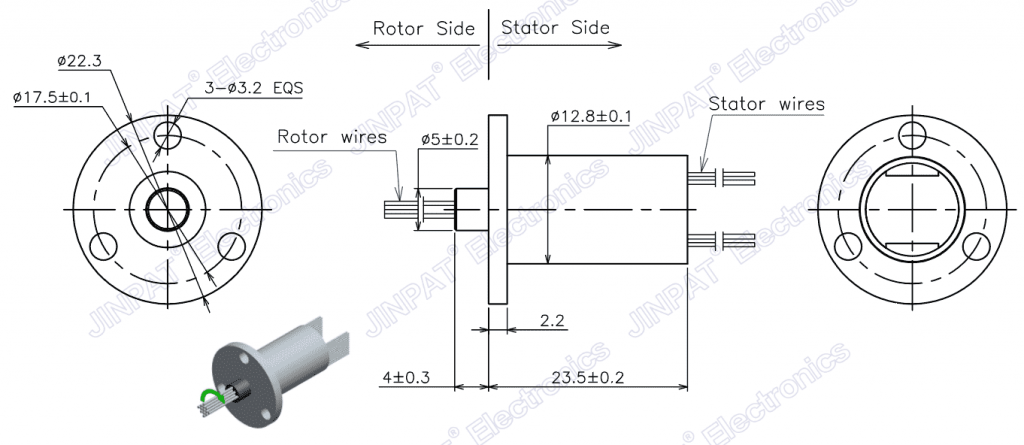

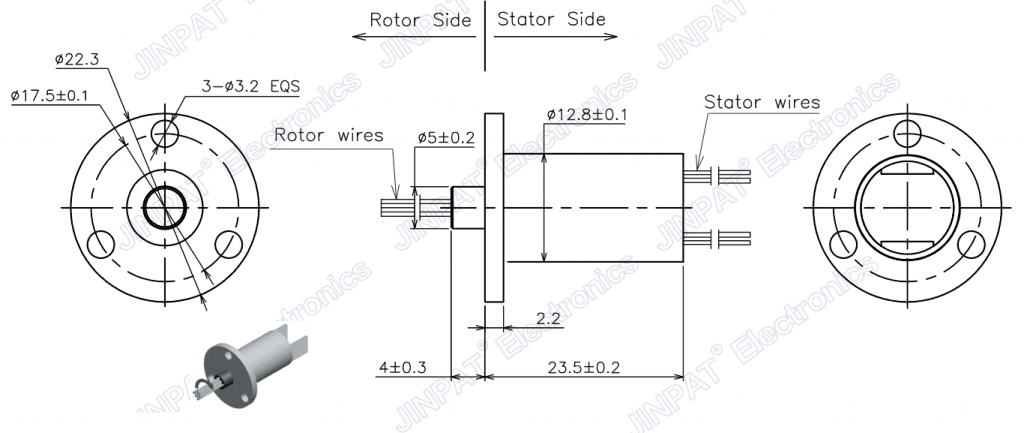

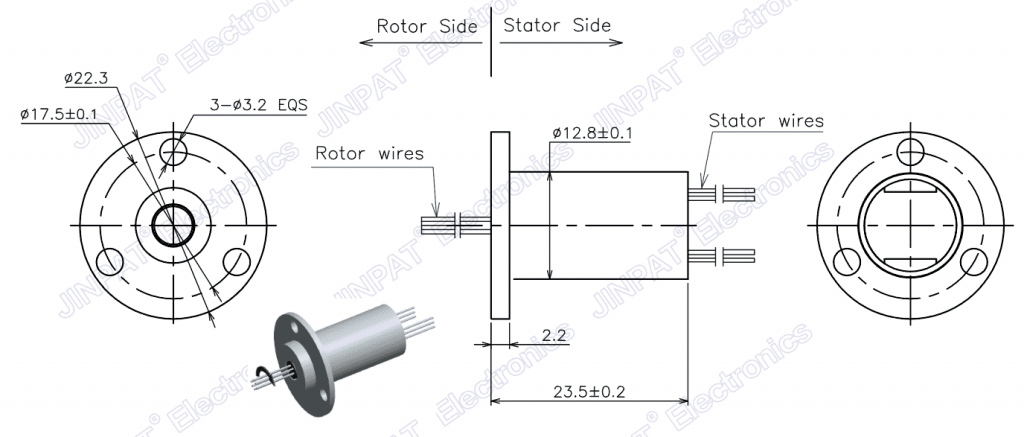

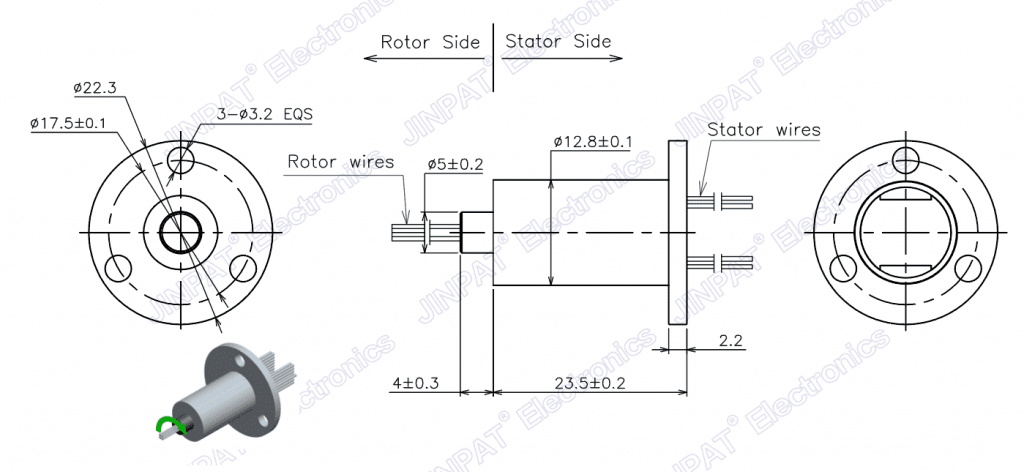

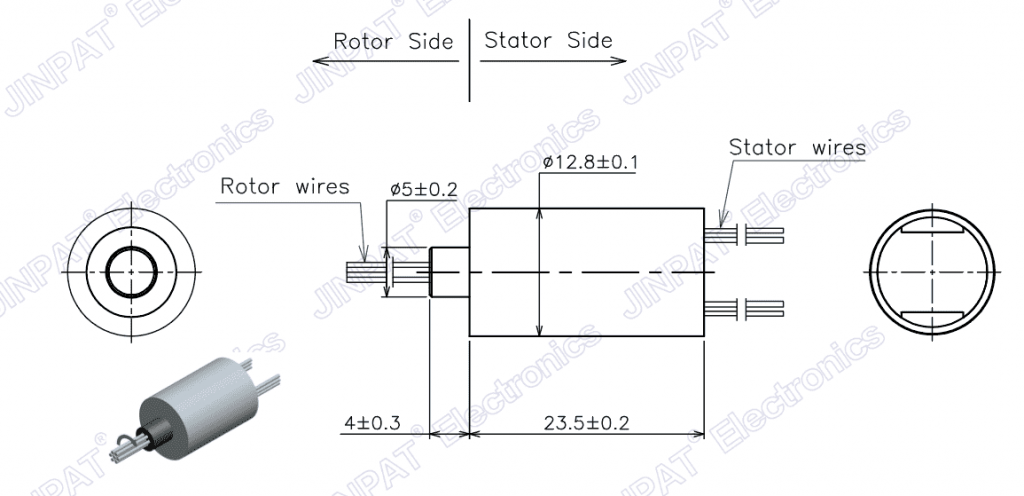

LPM-18A Outline Drawing
