LPM-18C  Miniature Capsule Slip Rings

LPM-18C Miniature Capsule Slip Rings

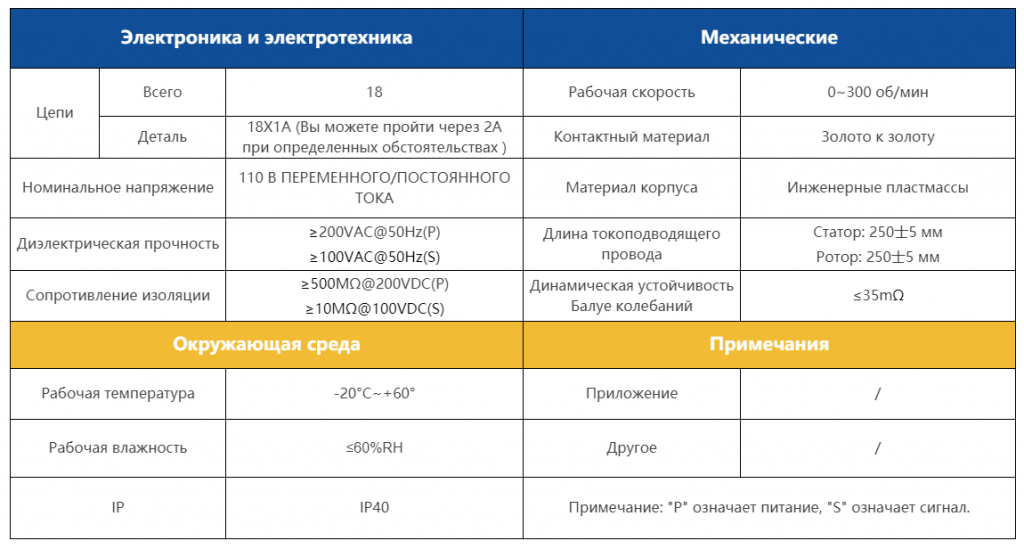

  • Number of Circuits :18
  • Current :1-2A
  • Insulation Resistance :≥50MΩ@200VDC(P) ≥10MΩ@100VDC(S)
  • Wire Length :Stator: 250士5mm Rotor: 250士5mm
  • Rating Voltage :110VAC/DC
Downloads CONTACT US
Model List

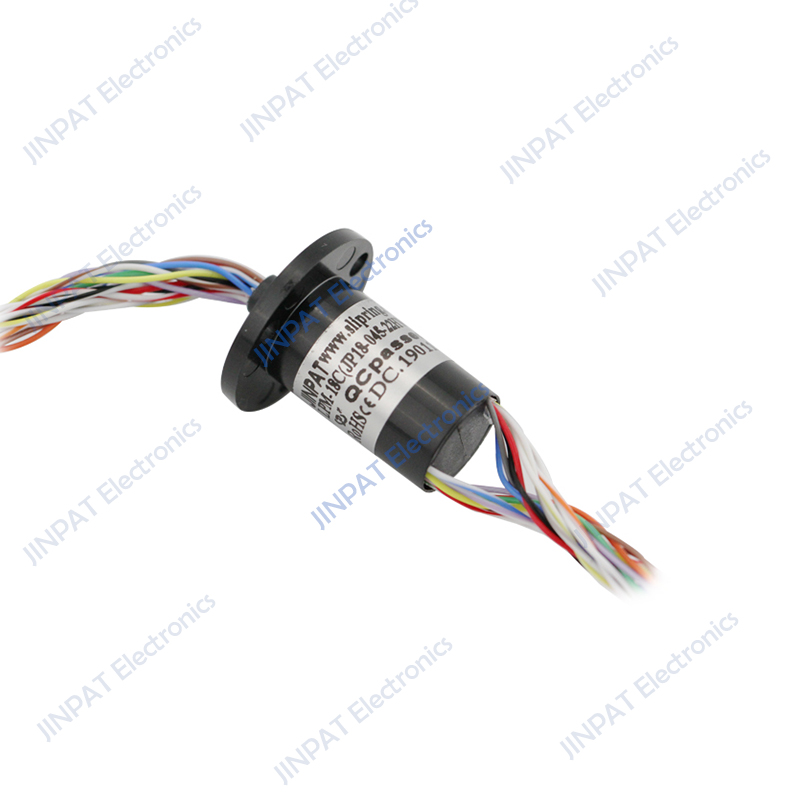

  LPM-18C   Miniature Capsule Slip Rings

The LPM-08C miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the   rotary interface. Color -coded lead wires are used on both the stator and rotor for simplifying   electrical connections.

The LPM-08C allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.

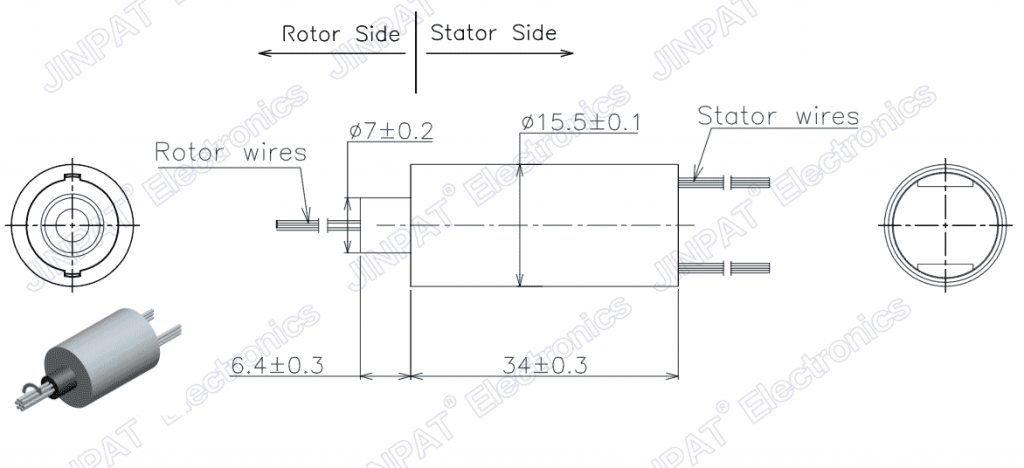

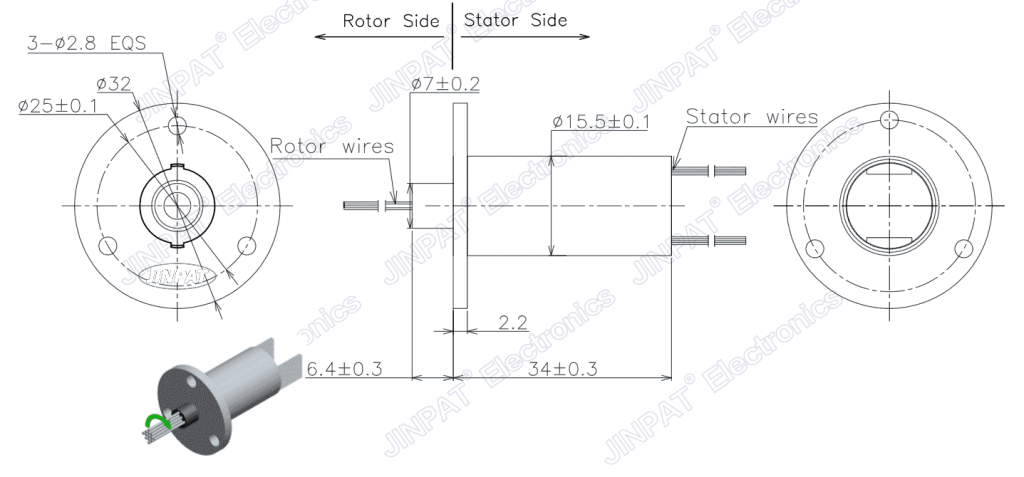

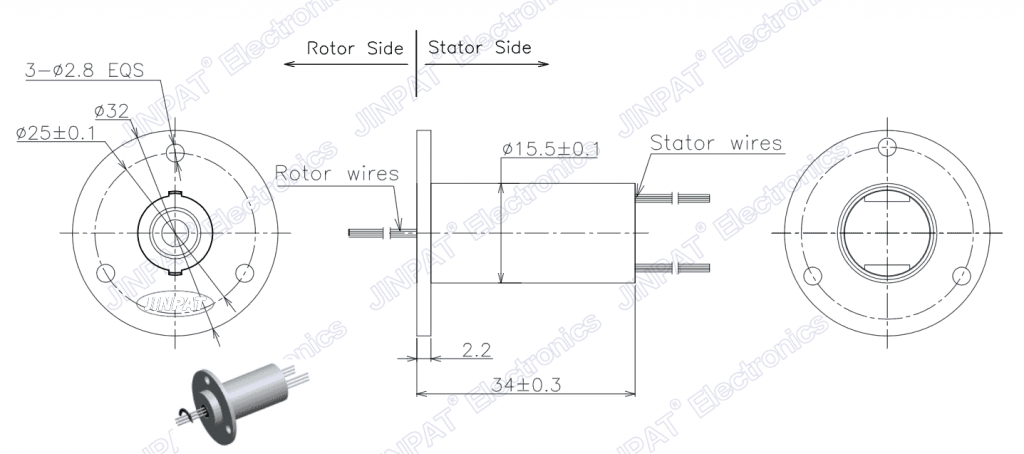

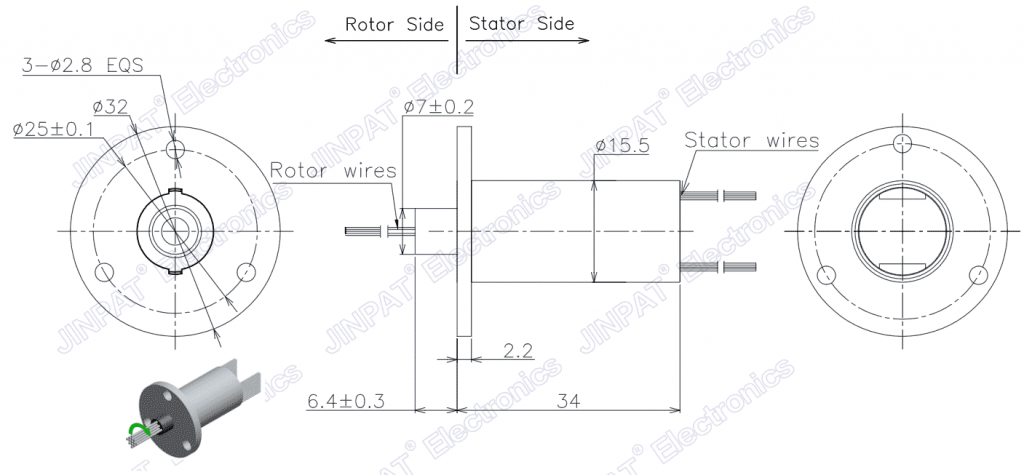

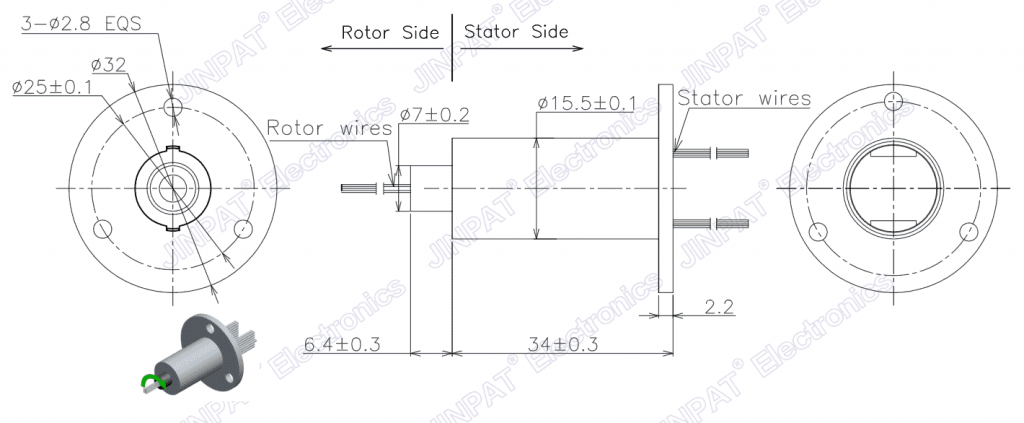

LPM-18C Outline Drawing
