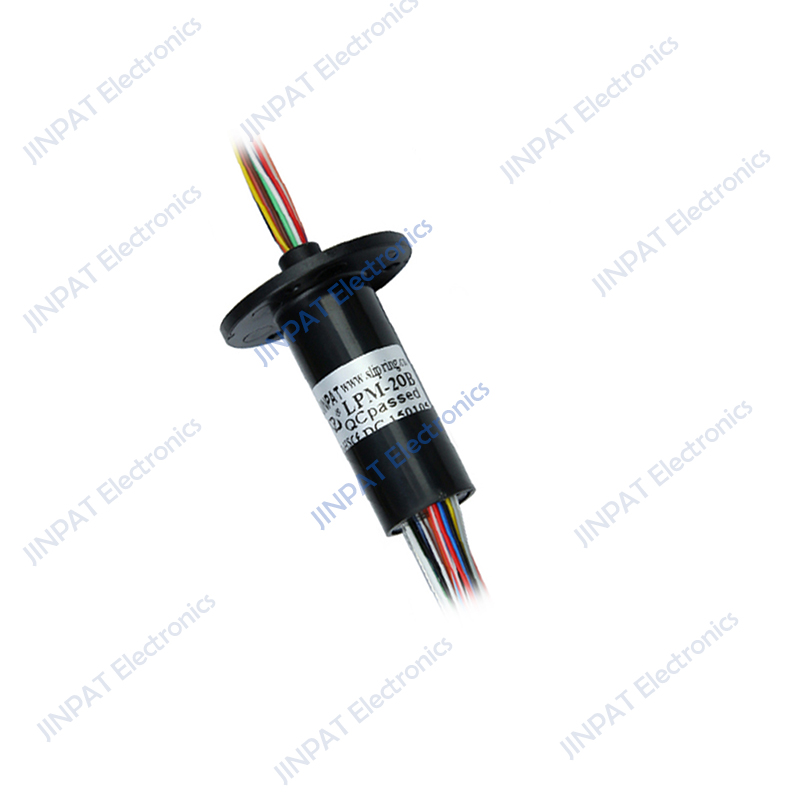

LPM-20B  Miniature Capsule Slip Rings

LPM-20B Miniature Capsule Slip Rings

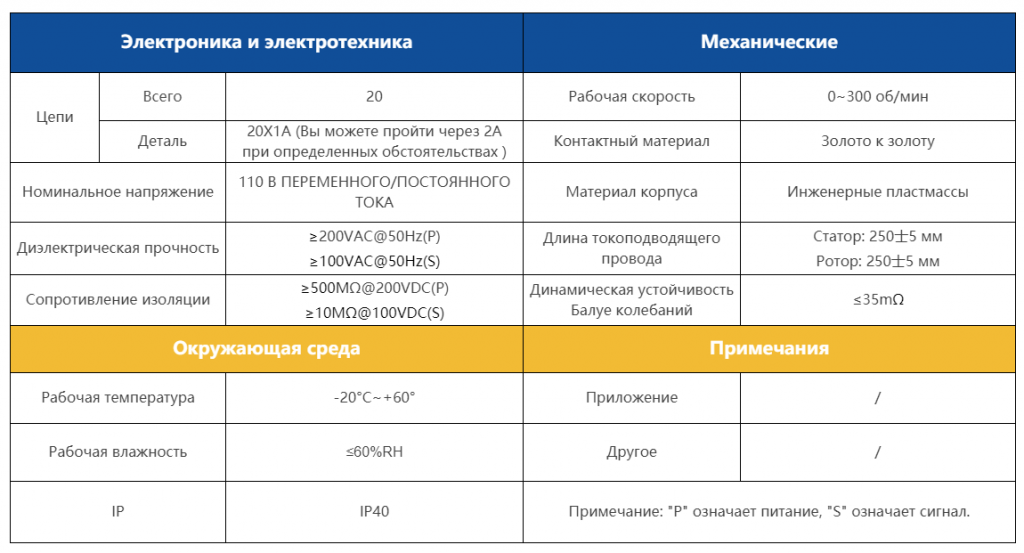

  • Number of Circuits :20
  • Current :1-2A
  • Insulation Resistance :≥50MΩ@200VDC(P) ≥10MΩ@100VDC(S)
  • Wire Length :Stator: 250士5mm Rotor: 250士5mm
  • Rating Voltage :110VAC/DC
Downloads CONTACT US
Model List

LPM-20B   Miniature Capsule Slip Rings

This series of slip ring can be used in any electromechanical system that requires unrestrained,

continuous rotation while transferring power or data from a stationary to a rotating structure. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation.

It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-20B allows tremendous flexibility in dealing with system size restrictions. It is available in 4, 6 12, 18 and 20 circuit configurations.

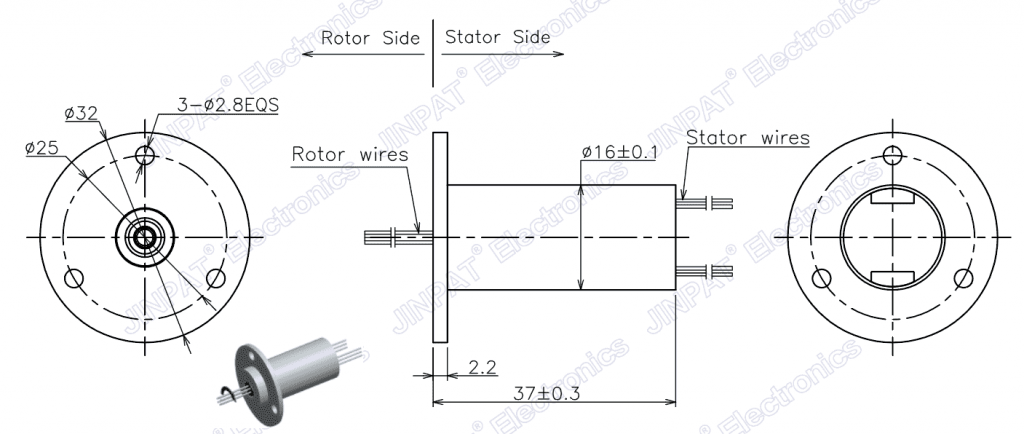

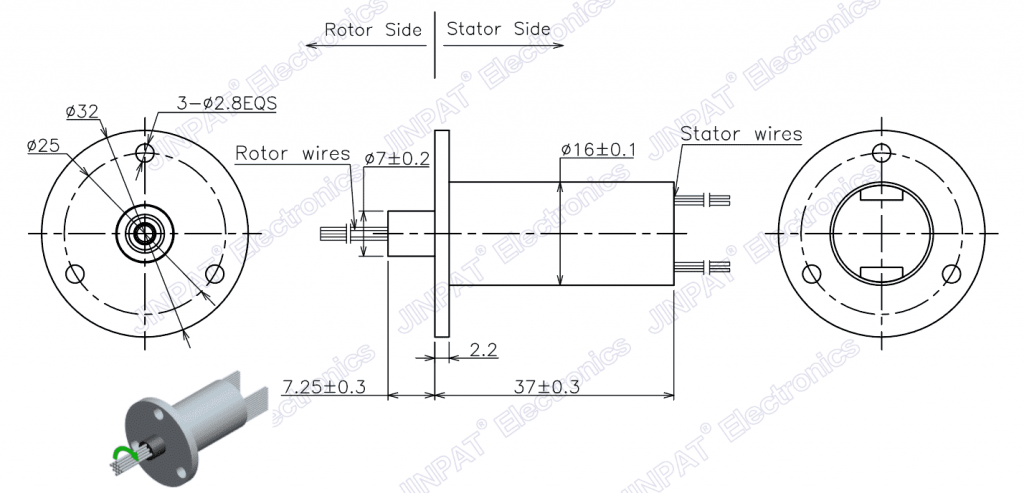

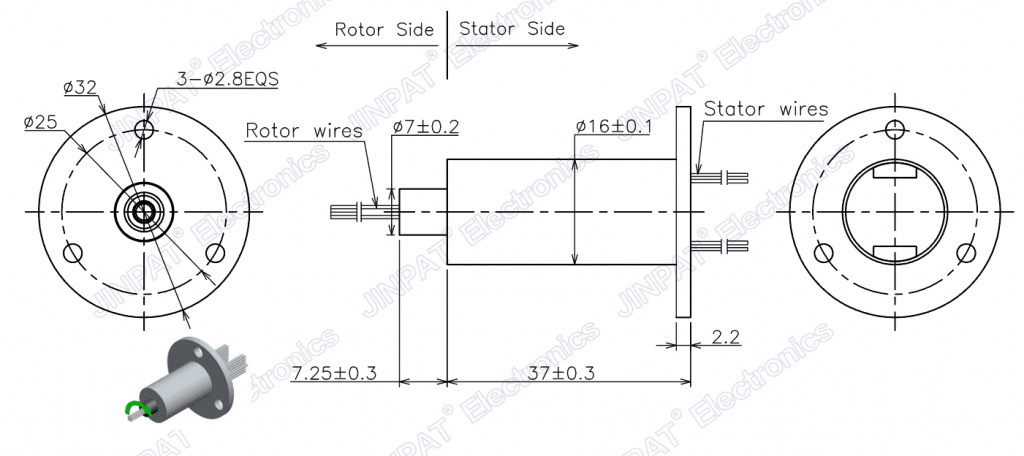

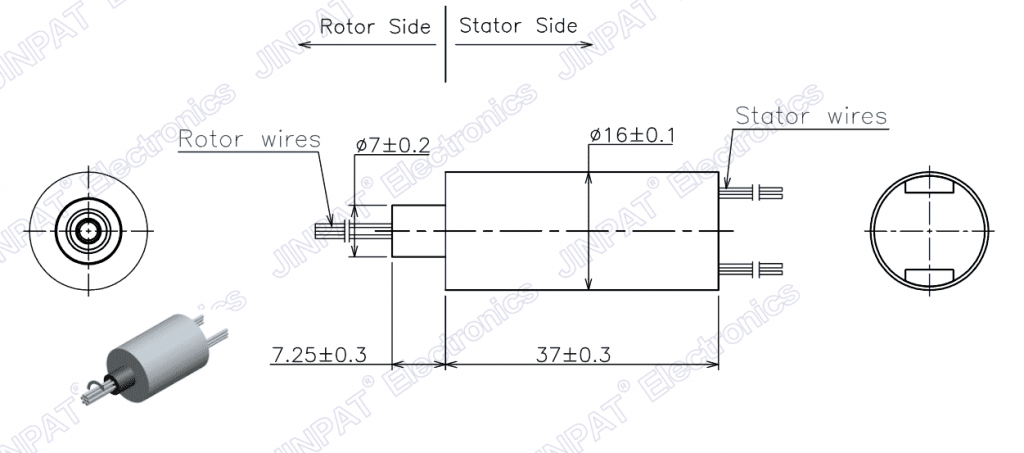

LPM-20B Outline Drawing
