LPM-30B  Miniature Capsule Slip Rings

LPM-30B Miniature Capsule Slip Rings

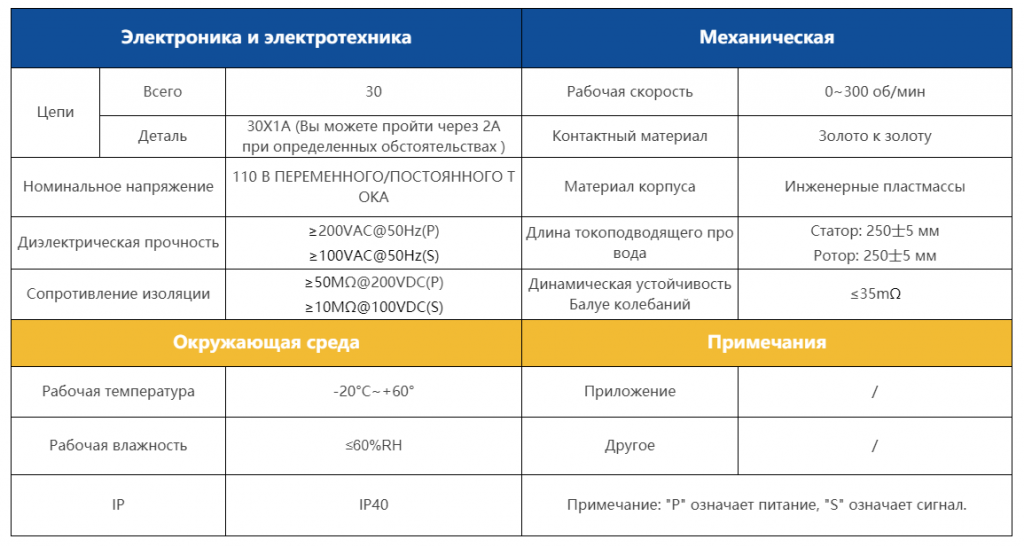

  • Number of Circuits :30
  • Current :1-2A
  • Insulation Resistance :≥50MΩ@200VDC(P) ≥10MΩ@100VDC(S)
  • Wire Length :Stator: 250士5mm Rotor: 250士5mm
  • Rating Voltage :110VAC/DC
Downloads CONTACT US
Model List

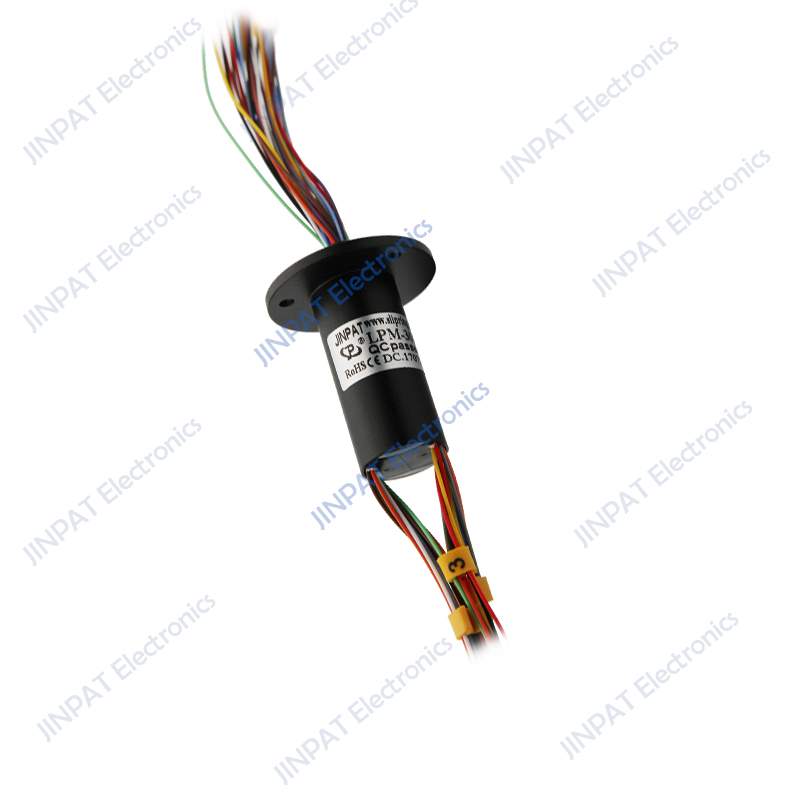

LPM-30B   Miniature Capsule Slip Rings

A slip ring capsule can be used in an electromechanical application to transfer low power and data over continuous rotary interface. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or a rotary joint.

The LPM-30B compact slip ring provides 30 circuits and operational speeds up to 300 rpm. Our fiber brush technology minimizes contact wear and Precision assembly while it extends operational life.

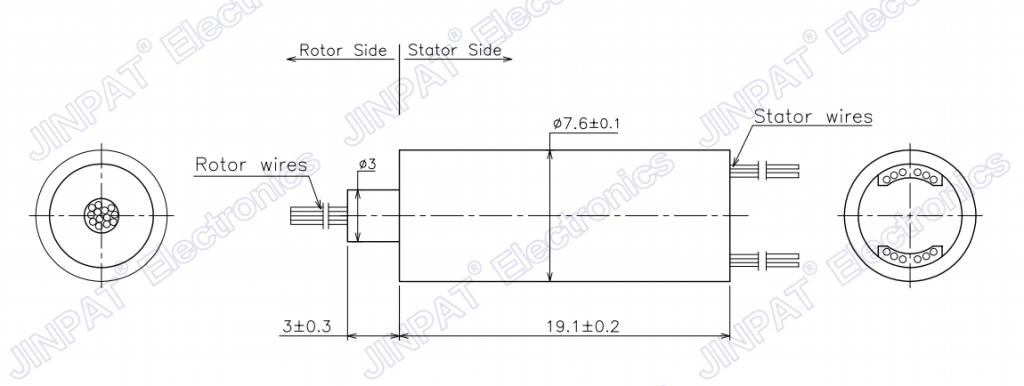

LPM-30BOutline Drawing
