Digitalization is becoming increasingly important in industrial ports and logistics systems.

Modern crane equipment requires high-speed communication for:

• Remote monitoring
• Automated operation
• Equipment management
• Real-time data exchange

Traditional electrical transmission systems may struggle to support both high power and high-speed data communication within limited installation space.

The TE1030417-TA-060 Rev A4 integrates:

Gigabit Ethernet Signal Transmission

This capability enables stable communication between:

• Rotating crane structures
• Stationary control systems
• Industrial automation platforms

By combining power transmission and communication functions in one slip ring system, the product helps simplify crane electrical architecture while improving operational reliability.

For automated ports and modern industrial terminals, reliable data transmission is becoming as important as power delivery.

---

Large-Scale Slip Ring Structure for Heavy Equipment Applications

Large harbor cranes require specially designed electrical components capable of handling complex system requirements.

The TE1030417-TA-060 Rev A4 features a large industrial structure with:

Product Height: 2.2 meters

The large-scale design provides sufficient internal space for integrating:

• High-current circuits
• Signal channels
• Ethernet communication
• Multiple electrical interfaces

Large crane applications have different requirements compared with standard machinery.

A heavy-duty crane slip ring must consider:

• Higher electrical loads
• Longer operation periods
• Larger mechanical dimensions
• More complex control systems

The TE1030417-TA-060 Rev A4 is engineered for these demanding industrial environments.

---

Designed for Harsh Port and Industrial Environments

Port equipment in Russia and northern regions may experience challenging operating conditions.

Crane electrical systems must maintain stable performance under:

• Cold weather conditions
• Outdoor installation
• Heavy industrial workloads
• Continuous operation schedules

A reliable slip ring helps protect crane productivity by reducing risks caused by:

• Electrical interruptions
• Signal instability
• Maintenance downtime

The TE1030417-TA-060 Rev A4 provides a robust rotary connection solution for applications requiring long-term reliability.

Its design philosophy focuses on:

• Stable transmission
• Industrial durability
• Continuous operation
• Easy system integration

---

Applications of Heavy Duty Slip Ring in Russian Port Equipment

The TE1030417-TA-060 Rev A4 can be used in various heavy industrial crane systems.

Ship-to-Shore (STS) Container Cranes

Container terminals require reliable crane systems for:

• Vessel loading
• Container unloading
• Cargo transportation

The slip ring provides:

• High-power electrical transmission
• Control signal connection
• Communication support

for large ship loading equipment.

---

Harbor and Marine Cranes

Marine cranes operate in complex environments where reliability is critical.

Applications include:

• Port lifting equipment
• Offshore cargo handling systems
• Heavy material transportation equipment

The high-current slip ring design supports stable operation of large crane machinery.

---

Bulk Material Handling Cranes

Industrial ports often use cranes for handling:

• Minerals
• Coal
• Steel materials
• Heavy cargo

These applications require:

• High power capacity
• Long operating cycles
• Reliable electrical transmission

The TE1030417-TA-060 Rev A4 helps provide a stable connection solution for these demanding systems.

---

Supporting Industrial Automation and Port Modernization

Ports around the world are moving toward smarter and more automated operations.

Future crane systems will increasingly require:

• Remote control capability
• Intelligent monitoring
• Data-based maintenance
• Automated operation

These technologies depend on reliable electrical and communication systems.

A high-performance port crane slip ring provides the foundation for:

• Continuous power transmission

• Stable data communication
• Improved equipment availability

For crane manufacturers and system integrators, selecting a suitable rotary electrical connection is essential for improving overall equipment performance.

---

Why Choose JINPAT Heavy Duty Slip Ring Solutions?

JINPAT specializes in developing customized slip ring solutions for industrial applications.

For large port cranes and heavy machinery, JINPAT provides:

High Current Transmission Technology

Designed to support:

• Large electrical loads
• Heavy-duty equipment
• Continuous industrial operation

Integrated Power and Signal Transmission

Combining:

• High-current circuits
• Control signals
• Ethernet communication

into one complete rotary connection system.

Customized Engineering Capability

Solutions can be optimized according to:

• Equipment dimensions
• Installation requirements
• Electrical specifications
• Operating environment

This flexibility allows JINPAT slip rings to meet the requirements of different crane manufacturers and industrial applications.

---

Conclusion

Heavy-duty port cranes require reliable electrical transmission systems to ensure continuous operation in demanding environments.

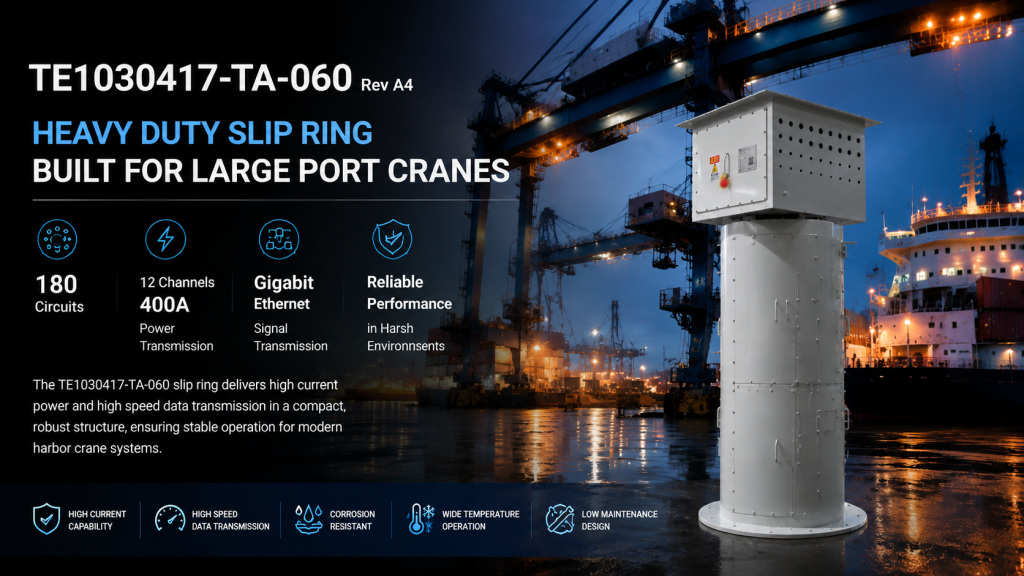

The JINPAT TE1030417-TA-060 Rev A4 slip ring provides a powerful solution featuring:

• 180 total circuits
• 17 high-current channels
• 12 × 400A power transmission circuits
• Gigabit Ethernet communication
• 2.2-meter large industrial structure

Designed for container cranes, harbor cranes, and heavy industrial lifting systems, this high-current rotary connector provides stable power and signal transmission for modern port equipment.

With advanced slip ring technology and customized engineering capability, JINPAT supports global crane manufacturers in improving equipment reliability, reducing maintenance requirements, and building more efficient industrial systems.
