LPR-2S Series Slip Rings

LPR-2S Series Slip Rings

  • Number of Circuits :2
  • Current 1-5a
  • Insulation Resistance :≥500MΩ@500VDC
  • Lead Wire Length :Gold plated pin (8mm)
  • Rating Voltage :0~240V AC/DC
Downloads CONTACT US

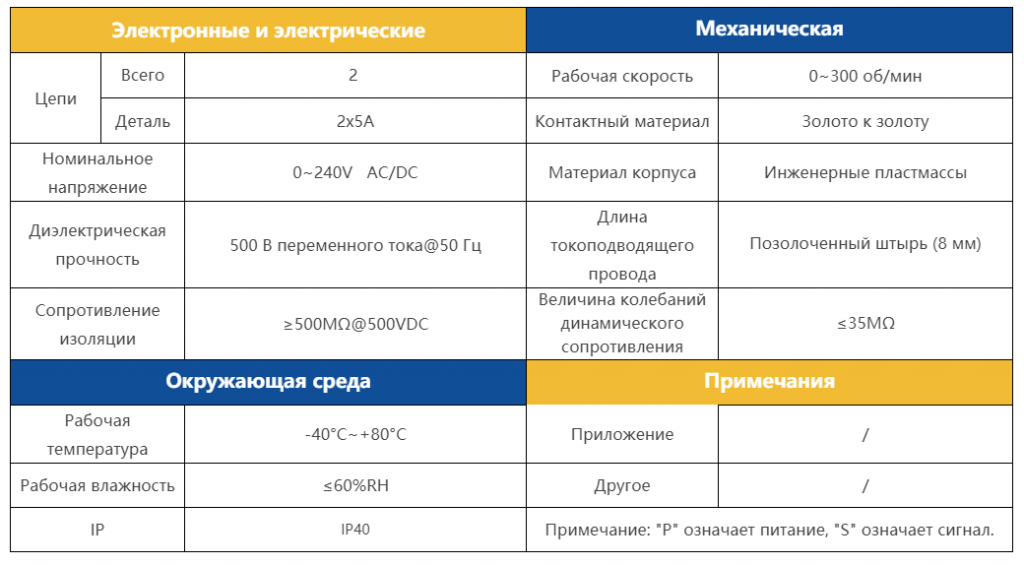

Model List

LPR-2S Series Slip Ring

Description

An electrical slip ring is a device used to transfer power and data from a stationary to a rotating structure. Slip rings can provide continuous or intermittent rotation while transmitting power and data – simplifying operation, improving application performance, and eliminating risk of damage to wiring between movable parts.   A slip ring is also called a rotary electrical interface, collector, swivel or a commutator. A slip ring can improve system performance by simplifying operations and eliminate damage prone to wires dangling from movable joints.

LPR-2S Series slip ring provides routing space for hydraulics, pneumatics or a concentric shaft mount. The LPR-2S adopts advanced fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.

Features

◆ Pins connector, convenient for installation

◆ No mercury, environment-friendly design

◆ Silver plated rings are standard. Gold plated optional.

◆ Speed up to 300 rpm continuous

◆ Steel bearings and machined shaft and housing for harsh environment

◆ Collar mounting is standard; flange mounting is optional

◆ Various lead exits are available

◆ Continuous 360°rotation of power or data signals

◆ Sealed unit
